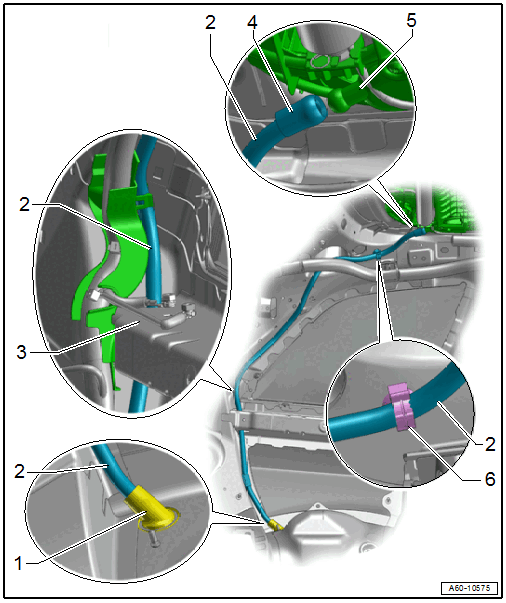

Overview - Water Drain Hoses, Rear
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Push all the way into the body using tire mounting paste
- Rear Water Drain Hose
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to REAR WATER DRAIN HOSES, REMOVING AND INSTALLING .
- Longitudinal Reinforcement
- With cut-out for the water drain hose
- Only on the left side of the vehicle
- Coupling Piece
- Attach to the connection
- Connection
- On the sunroof frame
- Clip
- For the water drain hose
- The mark on the hose must rest in the clip
