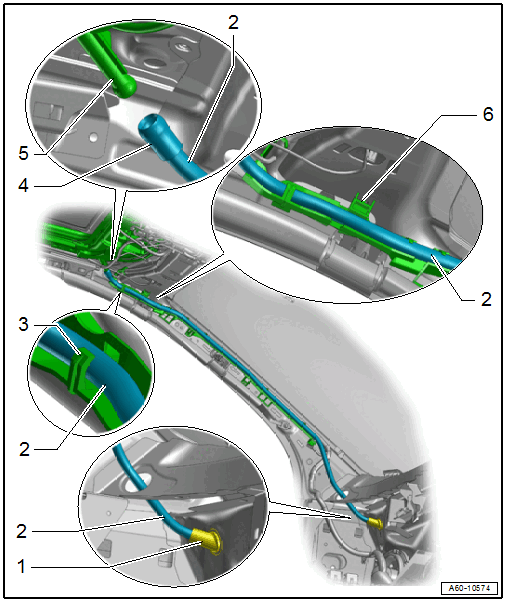

Overview - Water Drain Hoses, Front
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Push all the way into the body using tire mounting paste
- Front Water Drain Hose
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to FRONT WATER DRAIN HOSES, REMOVING AND INSTALLING .
- Clip
- For the water drain hose
- The mark on the hose must rest in the clip
- Coupling Piece
- Attach to the connection
- Connection
- On the sunroof frame
- Guide
- For the water drain hose
