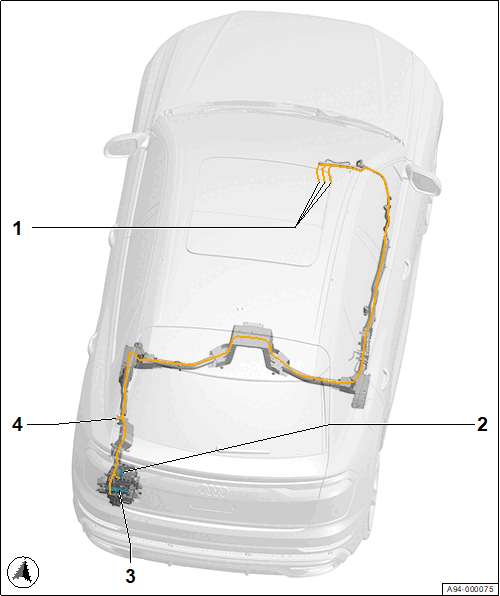

Component Location Overview - Alcohol Interlock System Interface
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Coupling Point for Alcohol Interlock System
- In the glove compartment
- Refer to ALCOHOL INTERLOCK SYSTEM - INSTALLATION INFORMATION
- Refer to ALCOHOL INTERLOCK SYSTEM, INITIAL OPERATION
- Refer to ALCOHOL INTERLOCK SYSTEM, REMOVAL
- Relay and Fuse Panel 3 -SR3-
- On the left side of the luggage compartment
- Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .
- Comfort System Central Control Module -J393-
- On the left side of the luggage compartment
- Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
- Luggage Compartment Ground Connection, Left
- Coupling Point for Alcohol Interlock System
- Positive cable terminal 30
- Ground wire terminal 31
- LIN bus wire
- Control Module
- With alcohol interlock system interface (LIN bus wire)
- Ground Connection
- Ground wire terminal 31 for alcohol interlock system
- Fuse Panel
- Positive cable terminal 30 for alcohol interlock system
