Overview - Output Shaft, Vehicles Without Self-Locking Center Differential

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

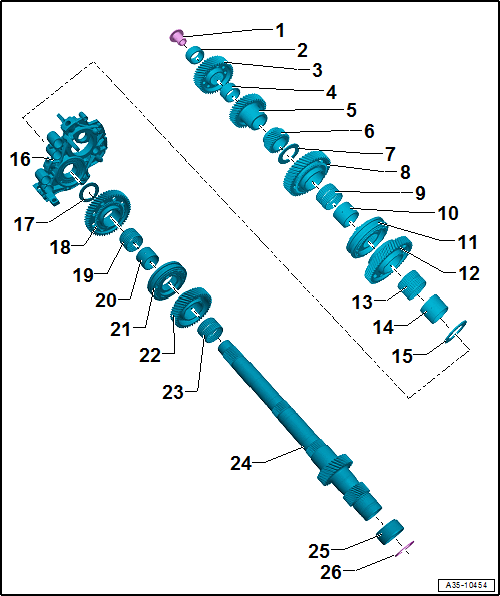

Fig 1: Output Shaft, Vehicles Without Self-Locking Center Differential Exploded View

Courtesy of AUDI

Internal Multi-Point Bolt
- Replace after removing
- 300 Nm
Inner Race
- Bearing "H"
- For output shaft roller bearing
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Spur Gear Unit Drive Wheel
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Spacer Sleeve
4th Gear
- Removing. Refer to Figure.
- Installing. Refer to Figure.
6th Gear
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Thrust Washer
- For 2nd gear assembly
2nd Gear Assembly
Needle Bearing
- For 2nd gear assembly
Inner Race/Needle Bearing
- For 2nd gear assembly
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Synchronization
- For the 2nd gear assembly / reverse gear assembly
- Installation position: the bevel of the locking collar -arrow- points to the 2nd gear assembly
- Overview. Refer to Overview - Synchronization .
- Installation position. Refer to Figure.
- Press out the synchronizer hub. Refer to Figure.
- Install the synchronizer hub. Refer to Figure.
Reverse Gear Assembly
Needle Bearing
- For reverse gear assembly
Inner Race/Needle Bearing
- For reverse gear assembly
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Thrust Washer
- For reverse gear assembly
Bearing Bracket
- With reverse gear intermediate sprocket
- Overview. Refer to OVERVIEW - BEARING BRACKET .
- Removing. Refer to Figure.
- Installing. Refer to Figure.
- Disassembling and Assembling. Refer to BEARING BRACKET, DISASSEMBLING AND ASSEMBLING .
Thrust Washer
- For 1st Gear Assembly
1st Gear Assembly
Needle Bearing
- For 1st Gear Assembly
Inner Race/Needle Bearing
- For 1st Gear Assembly
- Removing. Refer to Figure.
- Installing. Refer to Figure.
Synchronization
- For 1st Gear Assembly / 3rd Gear Assembly
- Overview. Refer to Overview - Synchronization .
- Installation position. Refer to Figure.
- Press out the synchronizer hub. Refer to Figure.
- Install the synchronizer hub. Refer to Figure.
3rd Gear Assembly
Needle Bearing
- For 3rd gear assembly
Output Shaft
- With splines for 5th and 7th gears
- Removing and Installing. Refer to GEAR SET, DISASSEMBLING AND ASSEMBLING .
- Disassembling and Assembling. Refer to OUTPUT SHAFT, DISASSEMBLING AND ASSEMBLING .
Bearing Inner Race
- Bearing "F"
- For output shaft roller sleeve
- Only for AWD vehicles
- Removing. Refer to AWD Vehicles .
- Installing. Refer to AWD Vehicles .
Circlip
- Only for AWD vehicles
