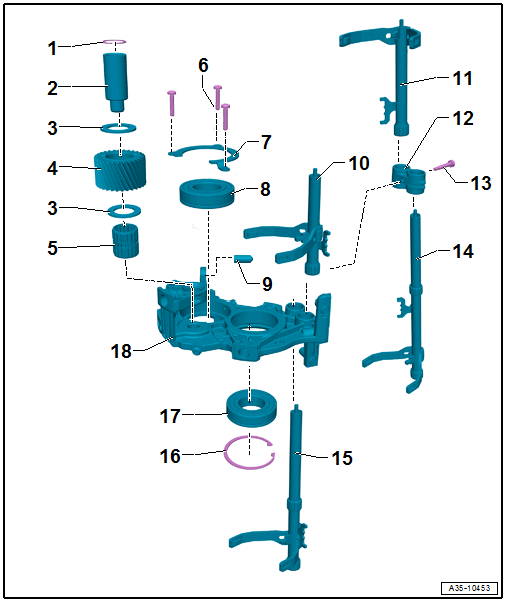

Overview - Bearing Bracket
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Circlip
- Shaft
- For reverse gear intermediate sprocket
- Thrust Washer
- For reverse gear intermediate sprocket
- Reverse Gear Intermediate Sprocket
- Needle Bearing
- For reverse gear intermediate sprocket
- Bolts
- Replace after removing
- 8 Nm +90°
- Retaining Plate
- For input shaft ball bearing
- Input Shaft Ball Bearing
- Bearing "C"
- Installation position. Refer to Assembling
- Removing. Refer to Figure.
- Inserting Assembling
- Locking Sleeves
- Quantity: 4
- Locking sleeves, removing and installing. Refer to Figure.
- Gearshift Rail/Shift Fork for 2nd Gear and Reverse Gear
- Gearshift Rail/Shift Fork for 4th and 6th Gear
- Mounting Bracket
- For Gearshift Rail/Shift Fork for 4th and 6th Gear and Gearshift Rail/Shift Fork for 5th and 7th Gear
- Bolt
- 6 Nm +30°
- Gearshift Rail/Shift Fork for 5th and 7th Gear
- Gearshift Rail/Shift Fork for 1st and 3rd Gear
- Circlip
- Installation position. Refer to Assembling
- Output Shaft Ball Bearing
- Bearing "G"
- Installation position. Refer to Assembling
- Removing. Refer to Figure.
- Inserting Assembling
- Bearing Bracket
- Disassembling and Assembling. Refer to BEARING BRACKET, DISASSEMBLING AND ASSEMBLING .
