Overview - Synchronization

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

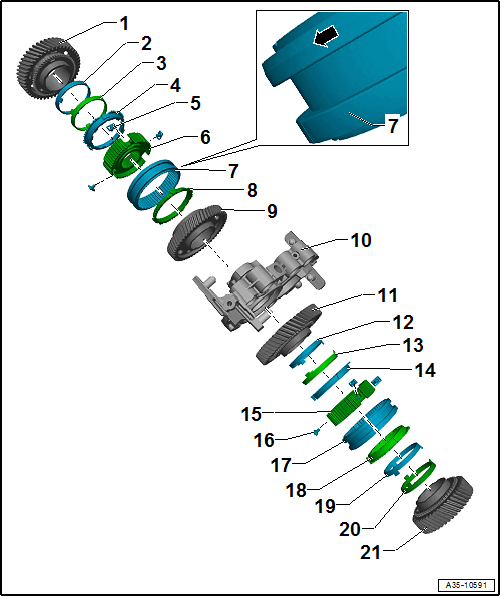

Fig 1: Output Shaft, Synchronization Exploded View
GWWA35-10591Courtesy of AUDI
  1. 2nd Gear Assembly
  2. Inner Race
    • For 2nd gear assembly
    • Do not interchange with the inner race for 1st gear assembly / 3rd gear
  3. Intermediate Ring
    • For 2nd gear assembly
    • Do not interchange with the intermediate ring for 1st gear assembly / 3rd gear
  4. Synchronizer Ring
    • For 2nd gear assembly
    • Do not interchange with the synchronizer ring for 1st gear assembly / 3rd gear
    • Replace if there are grooves or scoring
  5. Thrust Piece
    • Quantity: 3
  6. Synchronizer Hub
    • For the 2nd gear assembly / reverse gear assembly

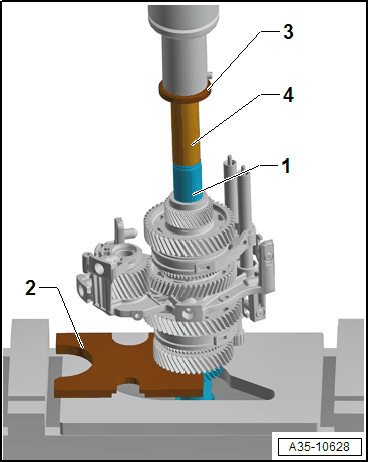

    • Vehicles with self-locking center differential: pressing off. Refer to Figure.
    • Vehicles without self-locking center differential: pressing on. Refer to Figure.

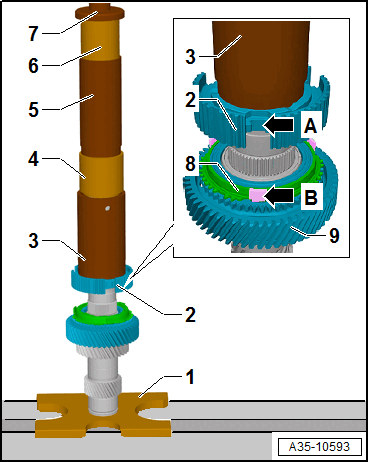

    • Installing. Refer to Figure.
  7. Locking Collar
    • For the 2nd gear assembly / reverse gear assembly
    • Installation position: the bevel of the locking collar -arrow- points to the 2nd gear assembly
  8. Synchronizer Ring
    • For reverse gear assembly
  9. Reverse Gear Assembly
  10. Bearing Bracket
  11. 1st Gear Assembly
  12. Inner Race
    • For 1st Gear Assembly
    • Do not interchange with the inner race for the 2nd gear assembly / 3rd gear
  13. Intermediate Ring
    • For 1st Gear Assembly
    • Do not interchange with the intermediate ring for 2nd gear assembly / 3rd gear
  14. Synchronizer Ring
    • For 1st Gear Assembly
    • Do not interchange with the synchronizer ring for 2nd gear assembly / 3rd gear
  15. Synchronizer Hub
    • For 1st Gear Assembly / 3rd Gear Assembly

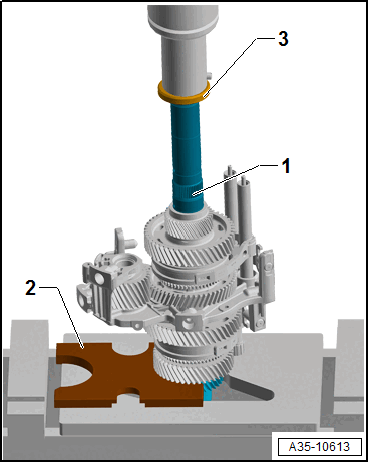

    • Vehicles with self-locking center differential: pressing off. Refer to Figure.
    • Vehicles without self-locking center differential: pressing on. Refer to Figure.

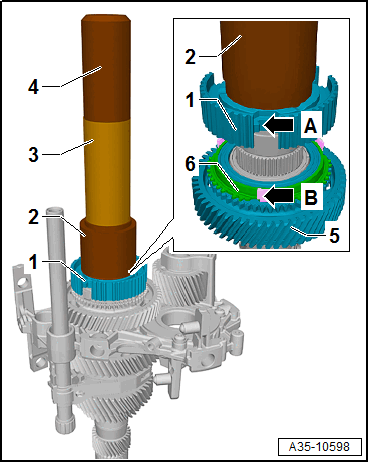

    • Installing. Refer to Figure.
  16. Thrust Piece
    • Quantity: 3
  17. Locking Collar
    • For 1st Gear Assembly / 3rd Gear Assembly
  18. Synchronizer Ring
    • For 3rd gear assembly
    • Do not interchange with the synchronizer ring for 1st gear assembly / 2nd gear
  19. Intermediate Ring
    • For 3rd gear assembly
    • Do not interchange with the intermediate ring for 1st gear assembly / 2nd gear
  20. Inner Race
    • For 3rd gear assembly
    • Do not interchange with the inner race for 1st gear assembly / 2nd gear
  21. 3rd Gear Assembly

    Installation position of the synchronizer rings for 1st gear assembly, 2nd gear and 3rd gear

    Fig 2: Installation Position of the Synchronizer Rings for 1st Gear Assembly, 2nd Gear and 3rd Gear
    GWWA35-10594Courtesy of AUDI

    1 -  Synchronizer Ring

    2 -  Intermediate Ring

    3 -  Inner Race

    4 -  Gear Assembly

    The splines -arrow a- of the synchronizer ring and the inner races must align.

    The splines -arrow B- of the intermediate ring and the gear assembly must be flush.
