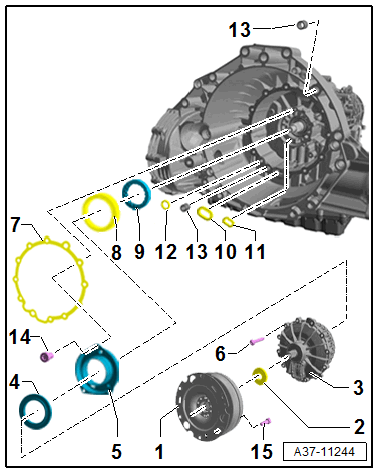

Overview - Flywheel And Dual Clutch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with TFSI e (0DK), refer to Clutch .
- Flywheel
- There are different versions depending on the model. Refer to the appropriate Electronic Parts Information for the allocation.
- Removing and Installing. Refer to FLYWHEEL, REMOVING AND INSTALLING .
- Shaft Seal
- For the input shaft
- Replacing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH COVER .
- Dual Clutch
- There are different versions depending on the model. Refer to the appropriate Electronic Parts Information for the allocation.
- Removing and Installing. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .
- Overview Dual Clutch. Refer to OVERVIEW - DUAL CLUTCH .
- Engaging Bearing
- Pay attention to the installation position
- Can only be replaced together with the dual clutch
- Removing and Installing. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .
- Slave Cylinder
- Can only be replaced together with the dual clutch
- Removing and Installing. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .
- Bolt
- Replace after removing
- Tighten diagonally to the tightening specification
- Tightening specification 12 Nm + 90°
- Seal
- Replace after removing
- Double Shaft Seal
- Replace after removing
- Removing and Installing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH HOUSING .
- Guide Sleeve
- Pay attention to the installation position
- Removing and Installing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH HOUSING .
- Seal
- Replace after removing
- Seal
- Replace after removing
- Seal
- Replace after removing
- Alignment Sleeve
- Bolt
- Not present depending on the version
- Tighten evenly
- Tightening specification 5 Nm + 30°
- Bolt
- M10 X 15.5
- Tightening specification 60 Nm
