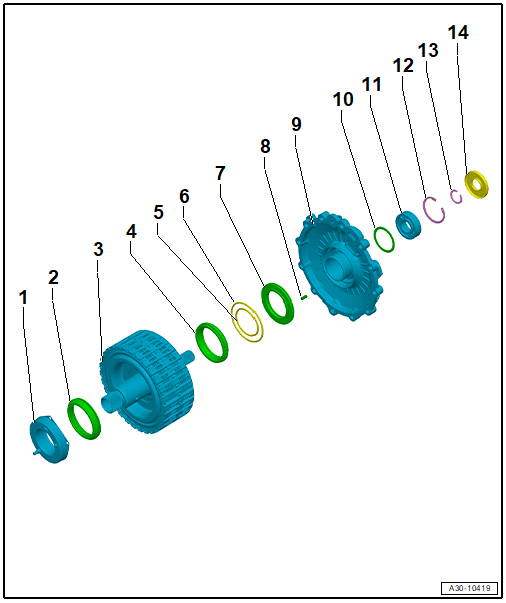

Overview - Dual Clutch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Slave Cylinder with Piston
- Can only be replaced together with the dual clutch
- Engaging Bearing
- Can only be replaced together with the dual clutch
- Dual Clutch
- Engaging Bearing
- Can only be replaced together with the dual clutch
- Seal
- Replace after removing
- Seal
- Replace after removing
- Piston
- Can only be replaced together with the dual clutch
- Removing and Installing. Refer to CLUTCH COVER, REPLACING .
- Bleeder Valve
- Installing. Refer to CLUTCH COVER, REPLACING .
- Clutch Cover
- Removing and Installing. Refer to DRIVE AXLE BEARING, REPLACING .
- Replacing. Refer to CLUTCH COVER, REPLACING .
- Washer
- Integrated in clutch cover
- Bearing A
- Removing and Installing. Refer to DRIVE AXLE BEARING, REPLACING .
- Circlip
- Replace after removing
- Circlip
- Replace after removing
- Shaft Seal
- Replace after removing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH COVER .
