Input Shaft Seal, Replacing, Clutch Housing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Puller - Crankshaft/Power Steering Seal:T20143

Fig 1: Crankshaft / Power Steering Seal Puller
Courtesy of AUDI

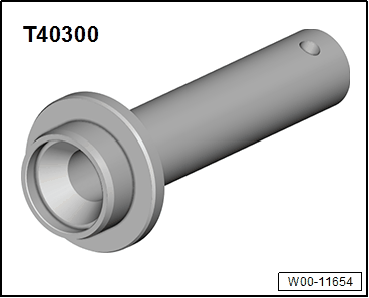

Thrust Piece:T40300

Courtesy of AUDI

Procedure

Clutch, engaging bearing and slave cylinder removed. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .

-- With the Puller - Crankshaft/Power Steering Seal:T20143 carefully remove the seal -arrow- from the housing.

Courtesy of AUDI

-- A waved washer -arrow- is located behind the seal, it does not need to be replaced.

Courtesy of AUDI

Pay attention to the installation position.

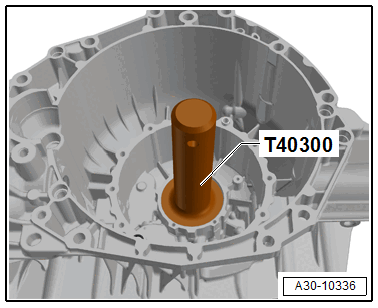

-- Drive the new seal in all the way using the Thrust Piece:T40300 .

Courtesy of AUDI

-- Dual Clutch, Installing. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .
