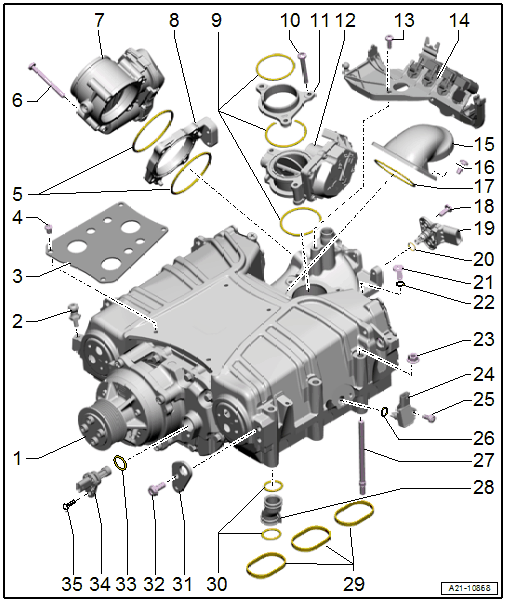

Overview - Supercharger
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Supercharger
- With charge air coolers
- Supercharger, removing and installing. Refer to SUPERCHARGER, REMOVING AND INSTALLING .
- Overview - Charge Air Cooler. Refer to OVERVIEW - CHARGE AIR SYSTEM .
- Secured on the Engine and Gearbox Bracket:VAS6095A for repair work. Refer to SUPERCHARGER, SECURING TO ENGINE/TRANSMISSION HOLDER FOR REPAIR WORK .
- Secured on the Engine and Gearbox Bracket:VAS6095A for leak test. Refer to SUPERCHARGER, SECURING TO ENGINE/TRANSMISSION HOLDER FOR LEAK TEST .
- Ball Pin
- 5 Nm
- For engine cover
- Insulation Plate
- Bolt
- 5 Nm
- O-rings
- Replace after removing
- Bolt
- Tightening specification. Refer to TIGHTENING SPECIFICATIONS .
- Throttle Valve Control Module -J338-
- Removing and installing. Refer to Throttle Valve Control Module -J338-, REMOVING AND INSTALLING .
- Intermediate Flange
- O-rings
- Replace after removing
- Bolt
- Tightening specification and sequence. Refer to TIGHTENING SPECIFICATIONS .
- Intermediate Flange
- Control Valve Control Unit -J808-
- Removing and installing. Refer to Control Valve Control Unit -J808-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bracket
- For change-over valves
- Connection
- Bolt
- Tightening specification and sequence. Refer to Tightening Specifications .
- O-ring
- Replace after removing
- Bolt
- 10 Nm
- Intake Air Temperature Sensor -G42- / Manifold Absolute Pressure Sensor -G71-
- Removing and installing. Refer to Intake Air Temperature Sensor -G42- /Manifold Absolute Pressure Sensor -G71-, REMOVING AND INSTALLING .
- O-ring
- Replace after removing
- Bleeder Screw
- 1.5 to 3.0 Nm
- For the charge air cooler
- Seal
- Replace after removing
- Nut
- 20 Nm
- Charge Air Pressure Sensor
- Cylinder bank 1 (right) Charge Air Pressure Sensor -G31-
- Cylinder bank 2 (left) Charge Air Pressure Sensor 2 -G447-
- Removing and installing. Refer to CHARGE AIR PRESSURE SENSOR - G31- / -G447-, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- O-ring
- Replace after removing
- Stud Bolt
- 17 Nm
- Connection
- For the crankcase ventilation
- Installed position. Refer to appropriate service information.
- Seals
- Replace after removing
- O-rings
- Quantity 2 each
- Replace after removing
- Engine Lifting Eye
- Bolt
- 27 Nm
- O-ring
- Replace after removing
- Turbocharger Speed Sensor 1 -G688-
- Removing and installing. Refer to Turbocharger Speed Sensor 1 -G688-, REMOVING AND INSTALLING .
- The opening cannot be used as an oil level display
- Bolt
- 10 Nm
