Supercharger, Securing To Engine/Transmission Holder For Leak Test
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The seals on the :T40304 should seal off the openings inside the compressor housing during the leakage test.
Special tools and workshop equipment required
- Engine and Gearbox Bracket VAS6095A :VAS6095A
- Gearbox Support :T40206 with Gearbox Support 1 :T40206/1
- Supercharger Module Support :T40304
- Supercharger removed. Refer to SUPERCHARGER, REMOVING AND INSTALLING .
-- Insert the :T40206 with :T40206/1 in the :VAS6095A .

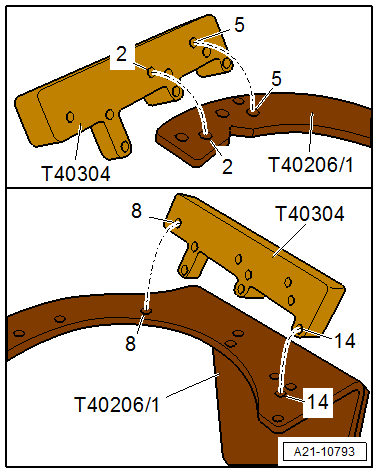

-- Install the :T40304 next loosely on the :T40206/1 while doing so pay attention to the allocation of the holes -2, 5, 8 and 14- on the mount and the :T40206 .

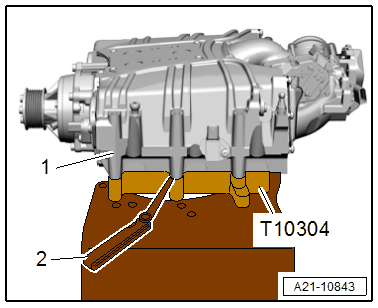

-- Place the supercharger on the :T40304 as shown in the illustration.
- The seals on the supports seal off the openings in the supercharger housing.
-- Lightly tighten the bolts -1- evenly on the left and the right diagonally hand-tight.
-- Tighten the :T40304 to 21 Nm on the :T40206/1 .
-- Check that the bolts are tightened evenly with the feeler gauge -2- and adjust if required.
- A uniform gap must be all around between the supercharger -1- and the :T40304 .
- Maximum gap dimension tolerance = 0.2 mm
