Supercharger, Securing To Engine/Transmission Holder For Repair Work
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The openings on the bottom of the supercharger housing should make it possible to see and reach the charge air cooler.
Special tools and workshop equipment required
- Engine and Gearbox Bracket :VAS6095A
- Gearbox Support :T40206 with Gearbox Support 1 :T40206/1
- Supercharger Module Support :T40304
- Supercharger removed. Refer to SUPERCHARGER, REMOVING AND INSTALLING .
-- Insert the :T40206 with :T40206/1 in the :VAS6095A .
-- Install the :T40304 next loosely on the :T40206/1 while doing so pay attention to the allocation of the holes -1, 3, 10 and 12- on the mount and the :T40206 .

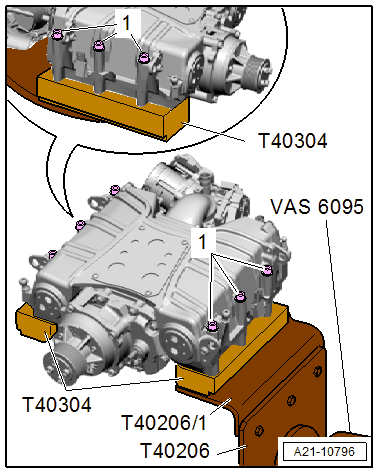

-- Place the supercharger on the :T40304 as shown in the illustration.
- It is possible to see and reach the charge air cooler through the openings on the bottom inside the supercharger housing.
-- Tighten the bolts -1- evenly on the left and the right diagonally hand-tight.
-- Tighten the :T40304 to 21 Nm on the :T40206/1 .
-- Tighten the left and right bolts -1- diagonally to 21 Nm.
