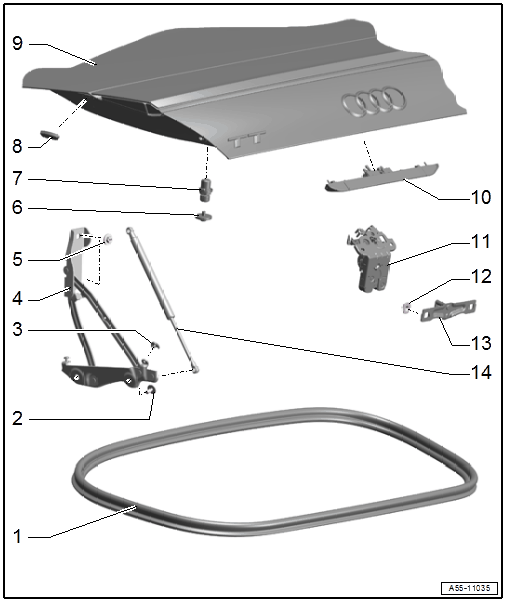

Overview - Rear Lid, Roadster
WARNING: This page is about a different variant/trim than selected.
- Overview - Rear Lid Release. Refer to OVERVIEW - REAR LID RELEASE .
- Rear Lid Seal
- Removing and Installing. Refer to REAR LID SEAL, REMOVING AND INSTALLING .
- Bolt
- 24 Nm
- Quantity: 2
- Cap
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT ADJUSTMENT AT HINGE, COUPE .
- Nut
- 24 Nm
- Quantity: 2
- Stop
- For the adjusting buffer
- Removing and Installing. Refer to ADJUSTING BUFFER STOP, REMOVING AND INSTALLING .
- Adjusting Buffer
- Removing and Installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Stop Buffer
- Side
- Rear Lid
- Removing and Installing. Refer to REAR LID, REMOVING AND INSTALLING, ROADSTER .
- Adjusting. Refer to REAR LID, ADJUSTING .
- Grip Piece
- With integrated license plate lamp
- Removing and Installing. Refer to the appropriate service information .
- Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING, ROADSTER .
- Nut
- 23 Nm
- Quantity: 2
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT ADJUSTMENT AT STRIKER .
- Gas-Filled Strut
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
