Latch, Removing And Installing, Roadster

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

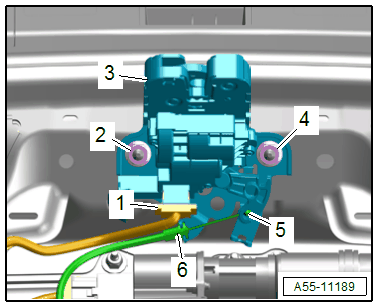

-- Remove the release cable bracket -6- from the mount.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the emergency release cable nipple -5- on the latch.

-- Disconnect the connector -1-.

-- Remove the nuts -2 and 4-.

-- Remove the latch -3-.

Installing

Install in reverse order of removal.

Tightening Specifications

• Refer to OVERVIEW - REAR LID RELEASE
