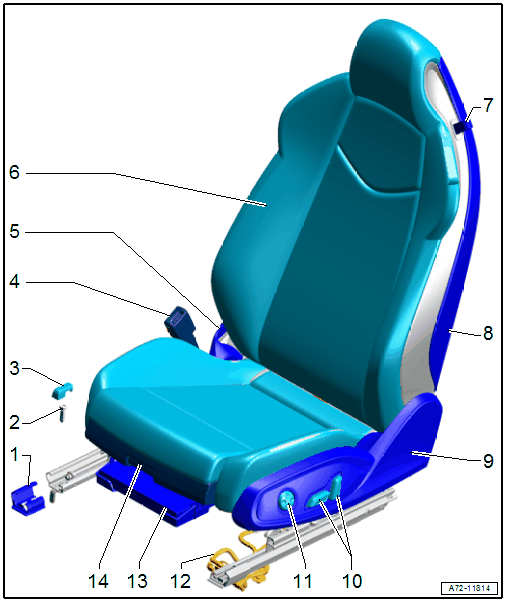

Overview - Front Seat

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

Cover
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Carefully push onto the seat rail until it engages audibly
- For the seat rail
- Quantity: 4
Bolt
- 40 Nm
- Quantity: 4
Spindle Cover
- Carefully push onto the spindle until it engages audibly
- For the seat rail
- Quantity: 2
Seat Belt Latch
- Removing and installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Tunnel Side Seat Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
Sport Seat/Super Sport Seat
Vehicles with:
- Fabric
- Leather
- Seat and backrest heating
- Lumbar Support
- Pneumatic System, Super Sport seat
- Storage compartment, front passenger seat
- Child seat anchor, front passenger seat
- Seat angle adjuster, Super Sport seat
- Seat depth adjuster, Super Sport seat
- Upper cabin heating, Super Sport seat Roadster
- Manual/power
- Removing and installing. Refer to FRONT SEAT, REMOVING AND INSTALLING .
Backrest Release/Entry Assistance
- Only TT Coupe
- Overview. Refer to OVERVIEW - BACKREST RELEASE AND ENTRY ASSISTANCE .
Backrest Cover
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SPORT SEAT .
Seat Side Trim on Side Sill
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .
Driver Seat Adjustment Control Head -E470-
- Front passenger side: Front Passenger Seat Adjustment Control Head -E471-
- Equipment levels
- Overview. Refer to OVERVIEW - SEAT PAN, SIDE SILL/TUNNEL-SIDE SEAT TRIM/SEAT SIDE TRIM .
Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Version with driver side Pneumatic seat: Driver Seat Switch Module -E663-
- Version with front passenger side Pneumatic seat: Front Passenger Seat Switch Module -E664-
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to Driver Seat Lumbar Support Adjustment Switch -E176- /Front Passenger Seat Lumbar Support Adjustment Switch -E177-, REMOVING AND INSTALLING .
Connector
- Wire routing with protective cover
- Remove the individual wire. Refer to FRONT SEAT WIRE ROUTING .
Owner's Manual Bracket
- Front passenger side: storage compartment/fire extinguisher
- Removing and installing. Refer to OWNER'S MANUAL, FIRE EXTINGUISHER AND STORAGE COMPARTMENT BRACKET, REMOVING AND INSTALLING .
Seat Depth Adjuster
- Only for Super Sport seat
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
