Overview - Backrest Release And Entry Assistance

WARNING: This page is about a different variant/trim than selected.

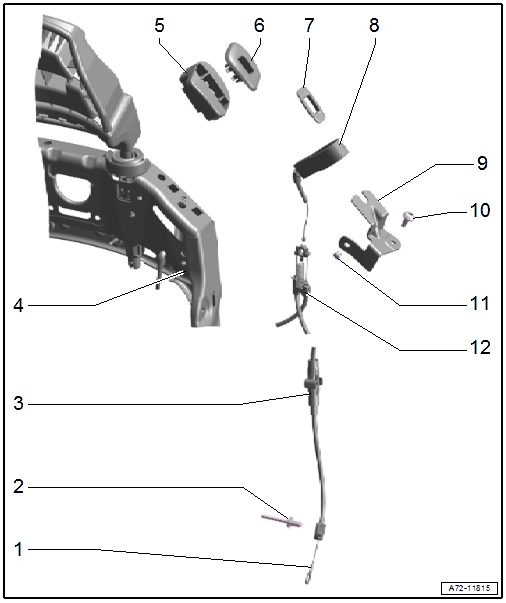

Fig 1: Exploded View Of Backrest Release And Entry Assistance

Courtesy of AUDI OF AMERICA, LLC

Eye
- Engage on the pins for the backrest release
Rivet
- Quantity: 2
Release Cable
- Clip in the backrest frame
Backrest Frame
Mount Trim
- For the Sport seat
- Removing and installing. Refer to BACKREST RELEASE, REMOVING AND INSTALLING .
Backrest Release Trim
- For the Sport seat
- Removing and installing. Refer to BACKREST RELEASE TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Backrest Release Trim
- For the Super Sport seat
- Removing and installing. Refer to BACKREST RELEASE TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Pull Strap
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to BACKREST RELEASE, REMOVING AND INSTALLING .
Bracket
- For the pull strap
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to BACKREST RELEASE, REMOVING AND INSTALLING .
Bolt
- 5 Nm
Expanding Clip
Backrest Release Cable
- One piece
- Removing and installing. Refer to BACKREST RELEASE, REMOVING AND INSTALLING .
