Overview - Release Cable

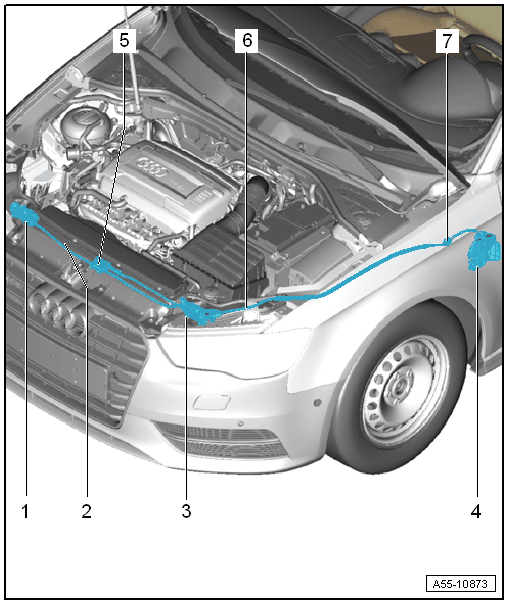

Fig 1: Exploded View Of Release Cable

Courtesy of AUDI OF AMERICA, LLC

Right Lid Lock
- Removing and installing. Refer to LATCH, REMOVING AND INSTALLING .
Latch Release Cable
- Removing:
  -- Disconnect the release cable at the coupling. Refer to Attach the Release Cable into the Coupling .

  -- Disengage the release cable from the operating lever.

  -- Pull the release cable through to the engine compartment.
- Installing: in reverse order of removal
- Adjust the latch point of release. Refer to Attach the Release Cable into the Coupling .
Left Lid Lock
- Removing and installing. Refer to LATCH, REMOVING AND INSTALLING
Operating Lever
- Removing and installing. Refer to Hood Release Lever, Removing .
Release Cable Coupling
- Removing and installing. Refer to Release Cable Coupling, Removing and Installing .
  -- Disengage the release cable inside the passenger compartment before removing the lock carrier and when removing the operating lever.
Release Lever Release Cable
- Routing to the passenger compartment. Refer to RELEASE CABLE, REMOVING AND INSTALLING .
Grommet
- Make sure it fits correctly when installing
