Overview - Sliding Sunroof

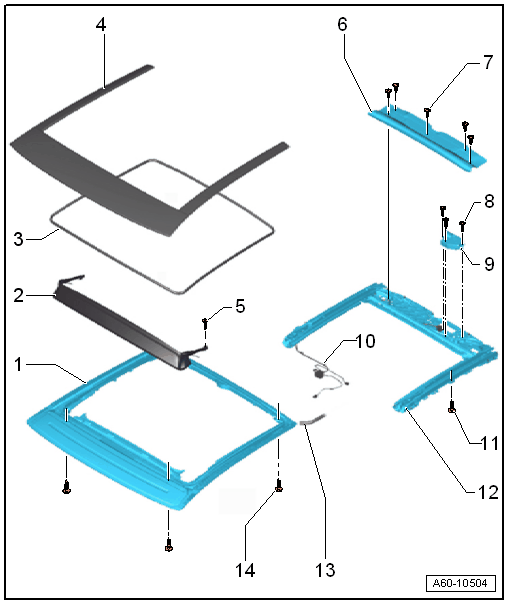

Fig 1: Exploded View Of Sliding Sunroof

Courtesy of AUDI OF AMERICA, LLC

Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING .
- Perform the adaptation after installing
Wind Deflector
- Removing and Installing. Refer to WIND DEFLECTOR, REMOVING AND INSTALLING .
- Perform the adaptation after installing
Seal
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING .
- Perform the adaptation after installing
Front Trim
- Removing and Installing. Refer to SLIDING SUNROOF FRONT TRIM, REMOVING AND INSTALLING .
- Perform the adaptation after installing
Bolt
- 2 Nm
Cover
Bolt
- 2 Nm
Bolt
- 3 Nm
Motor (Power Sunroof Control Module -J245-)
- Removing and Installing. Refer to Sunroof Control Module -J245-, REMOVING AND INSTALLING .
- Perform the adaptation after installing
Water Drain Hose
- Removing and Installing. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .
Bolt
- Slotted guide rail guide with hybrid frame: 3 Nm
- Slotted guide rail guide with K frame. Refer to Tightening Specifications .
Slotted Guide Rail Guide Frame
- With the slotted guide rail guides and cables
- Removing and Installing. Refer to SLOTTED GUIDE RAIL GUIDE, REMOVING AND INSTALLING .
- Perform the adaptation after installing
Wiring Harness
Bolt
- 3.5 Nm
  - Follow the tightening sequence
  - Tighten the right front bolts first, then the left.
  - Tighten the right rear bolts first, then the left.
