Sunroof Seals, Removing And Installing

CAUTION:

It is necessary to program the mechanical components or control modules on the sliding/tilting sunroof after removing and installing them using Guided Functions in Guided Fault Finding at diagnostic address 09 with the Vehicle Diagnostic Tester.

Remove the Upper Seal

Courtesy of AUDI OF AMERICA, LLC

-- The glass panel is removed.

Upper Seal

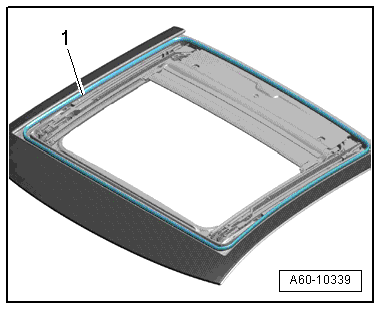

-- Remove the seal -1- around the sealing channel upward.

Courtesy of AUDI OF AMERICA, LLC

Install the Upper Seal

Courtesy of AUDI OF AMERICA, LLC

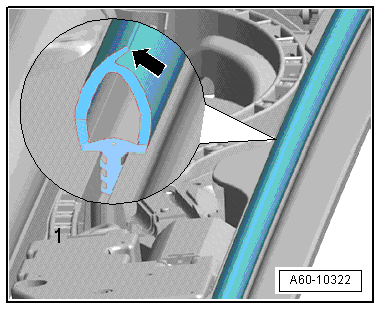

Place the seal with the lips -arrow- pointing outwards on the sealing channel.

-- Align the seal with the butt joint -arrow- behind the vehicle center and push in the sealing channel.

Courtesy of AUDI OF AMERICA, LLC

-- Push the seal around the sealing channel.

Courtesy of AUDI OF AMERICA, LLC

Do not stretch the seal because otherwise it cannot be fully pressed in the sealing channel.

Panel Seal, Replacing

Courtesy of AUDI OF AMERICA, LLC

-- Open the glass panel.

-- Remove the rear panel seal -1- from the sealing channel.

Installing

NOTE:

For an easier installation, spray the seal with soapy water, for example.

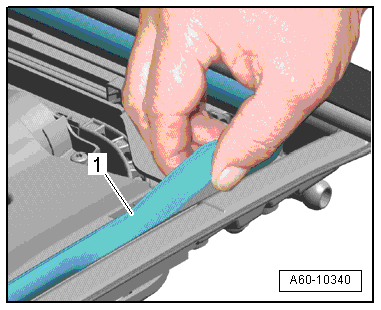

-- Place the seal -1- on both sides in the panel.

Courtesy of AUDI OF AMERICA, LLC

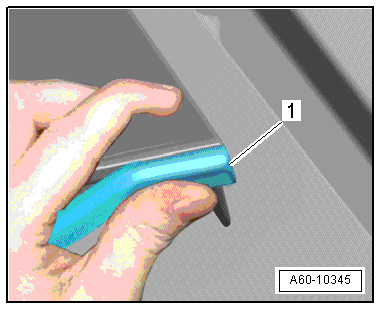

-- Push the seal -1- as shown in the cut out in the sealing channel.

Courtesy of AUDI OF AMERICA, LLC

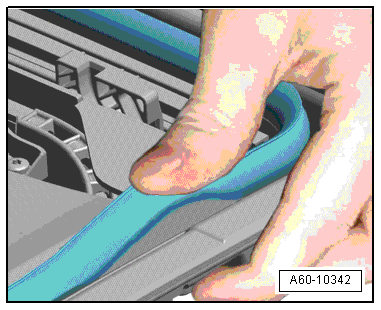

-- Push the seal -1- from both sides to the middle completely in the sealing channel.
