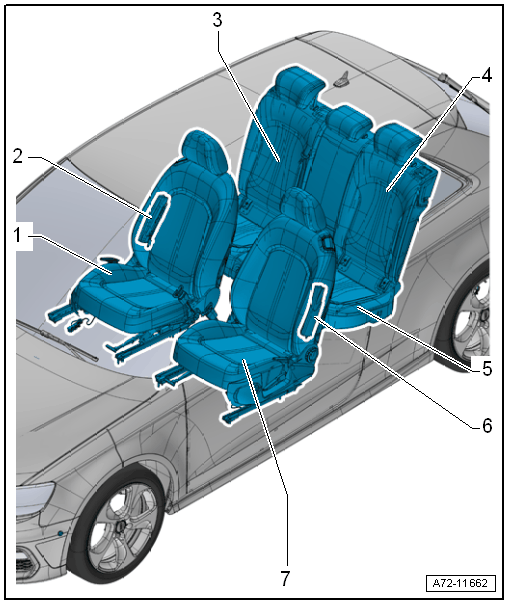

Component Location Overview - Seat Versions
- Front Passenger Seat
Standard Seat/Sport Seat/Super Sport seat:
- Vehicles with:
- Fabric
- Leather
- Seat and backrest heating
- Lumbar Support
- Storage Compartment
- Child Seat Anchor
- Footwell Lamp
- Seat angle adjustment, Sport seat/Super Sport seat
- Seat depth adjuster, Sport seat/Super Sport seat
- A3: with backrest release/entry assistance
- Manual/power
- Overview. Refer to OVERVIEW - FRONT SEAT .
- Vehicles with:
- Thorax Airbag
- With Front Passenger Thorax Airbag Igniter -N200-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
- Right 2/3 Rear Seat Backrest
Standard seat/Sport seat
- Vehicles with:
- Fabric
- Leather
- with/without pass-through door
- Overview. Refer to OVERVIEW - REAR SEAT BACKREST .
- Vehicles with:
- Left 1/3 Rear Seat Backrest
Standard Seat/Sport Seat
- Vehicles with:
- Fabric
- Leather
- Overview. Refer to OVERVIEW - REAR SEAT BACKREST .
- Vehicles with:
- Bench Seat
Standard Seat/Sport Seat
- Vehicles with:
- Fabric
- Leather
- with/without center storage compartment
- Overview. Refer to OVERVIEW - BENCH SEAT/SINGLE SEATS .
- Vehicles with:
- Thorax Airbag
- With Driver Thorax Airbag Igniter -N199-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
- Driver Seat
Standard Seat/Sport Seat/Super Sport Seat:
- Vehicles with:
- Fabric
- Leather
- Seat and backrest heating
- Lumbar Support
- Storage Compartment
- Footwell Lamp
- Seat angle adjustment, Sport seat/Super Sport seat
- Seat depth adjuster, Sport seat/Super Sport seat
- A3: with backrest release/entry assistance
- Manual/power
- Overview. Refer to OVERVIEW - FRONT SEAT .
- Vehicles with:
