Overview - Bench Seat/Single Seats

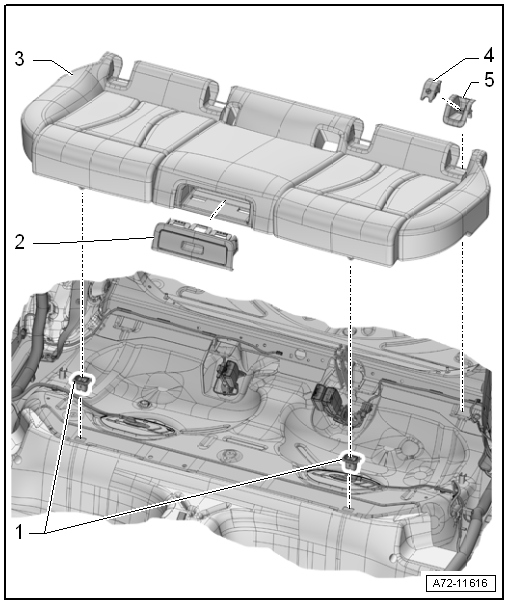

Fig 1: Exploded View Of Bench Seat/Single Seat

Courtesy of AUDI OF AMERICA, LLC

Retainers
- Quantity: 2
- For securing the rear bench seat
- Clipped into the vehicle floor
- Replace each time the rear bench seat is removed
Center Storage Compartment for Reflective Vest
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to CENTER STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Must engage correctly in the mount
Rear Bench Seat
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
- The seat frame must engage correctly in the mounts
Cap
- For the LATCH child seat anchor
- Quantity: 4
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR SEAT .
- Must be secure in the anchor
Guide
- For the LATCH child seat anchor
- Quantity: 4
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR SEAT .
- Must be secure in the anchor
