Component Location Overview - Instrument Panel

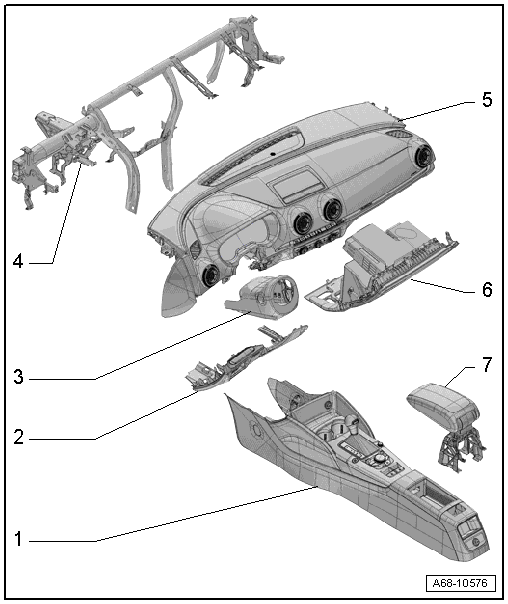

Fig 1: Exploded View Of Instrument Panel

Courtesy of AUDI OF AMERICA, LLC

1. Center Console
   • Overview. Refer to OVERVIEW - CENTER CONSOLE .
2. Driver Side Instrument Panel Cover
   • Overview. Refer to OVERVIEW - DRIVER SIDE INSTRUMENT PANEL COVER .
3. Steering Column Trim Panel
   • Overview. Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
4. Crossmember
   • For the instrument panel
   • Overview. Refer to OVERVIEW - INSTRUMENT PANEL CROSSMEMBER .
5. Instrument Panel
   • Overview. Refer to OVERVIEW - INSTRUMENT PANEL .
6. Glove Compartment
   • Overview. Refer to OVERVIEW - GLOVE COMPARTMENT .
7. Front Center Armrest
   • Overview. Refer to OVERVIEW - FRONT CENTER ARMREST .
