Overview - Driver Side Instrument Panel Cover

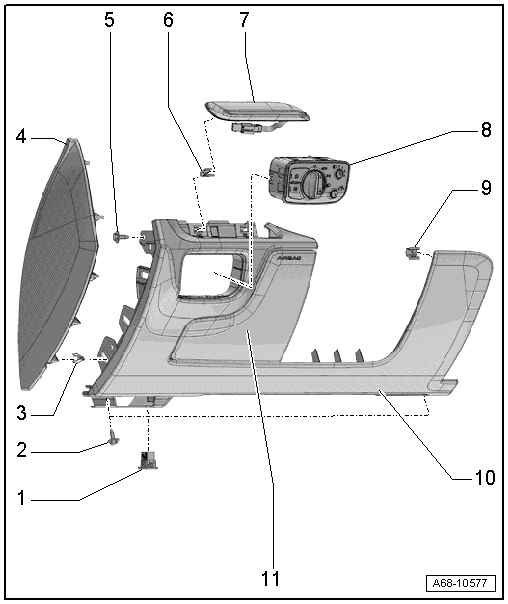

Fig 1: Exploded View Of Driver Side Instrument Panel Cover

Courtesy of AUDI OF AMERICA, LLC

1. Left Footwell Lamp -W9-
   • Equipped on some models
   • Component Location Overview. Refer to LAMPS .
2. Bolt
   • 3 Nm
   • Quantity: 2
3. Clip
   • For the side trim
   • Quantity: 5
   • Replace damaged or deformed clips
   • Insert in the cover
4. Side Cover
   • For the instrument panel
   • Removing and Installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
5. Bolt
   • 1.5 Nm
6. Clip
   • For trim panel
   • Quantity: 2
   • Replace damaged or deformed clips
   • Place in the instrument panel cover
7. Instrument Panel Decorative Trim
   • Allocation. Refer to the Parts Catalog.
   • Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
8. Light Switch -E1-
   • Component Location Overview. Refer to CONTROLS .
9. Clip
   • For the driver side instrument panel cover
   • Quantity: 3
   • Replace damaged or deformed clips
   • Press into the instrument panel
10. Driver Side Instrument Panel Cover
    • Allocation. Refer to the Parts Catalog.
    • Removing and Installing. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
11. Cap
    • For the Fuse Panel C -SC-
    • Clipped in to the instrument panel cover
