Overview - Steering Column Trim Panel

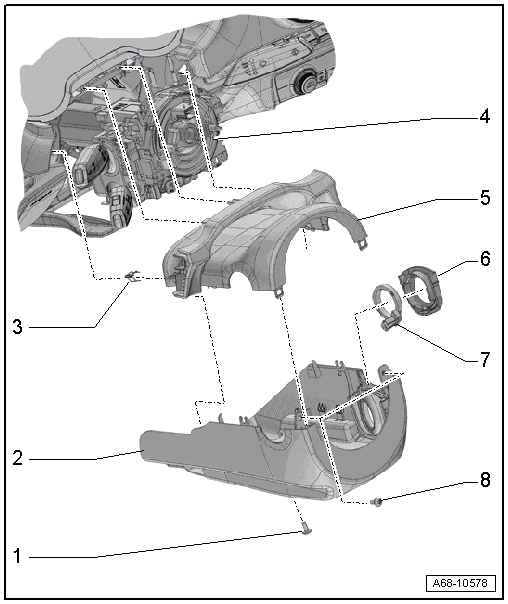

Fig 1: Exploded View Of Steering Column Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2.5 Nm
Lower Steering Column Trim Panel
- Removing and Installing. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
Clip
- For the gap cover.
- Quantity: 2
- Replace damaged or deformed clips
- Insert into the gap cover
Steering Column Switch Module
- Overview. Refer to STEERING COLUMN SWITCH MODULE .
Upper Steering Column Trim Panel
- Removing and Installing. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly.
Mount
- For the reader coil
- Overview. Refer to STEERING COLUMN SWITCH MODULE .
Anti-Theft Immobilizer Reader Coil -D2-
- Overview. Refer to STEERING COLUMN SWITCH MODULE .
Bolt
- 2.5 Nm
- Quantity: 2
