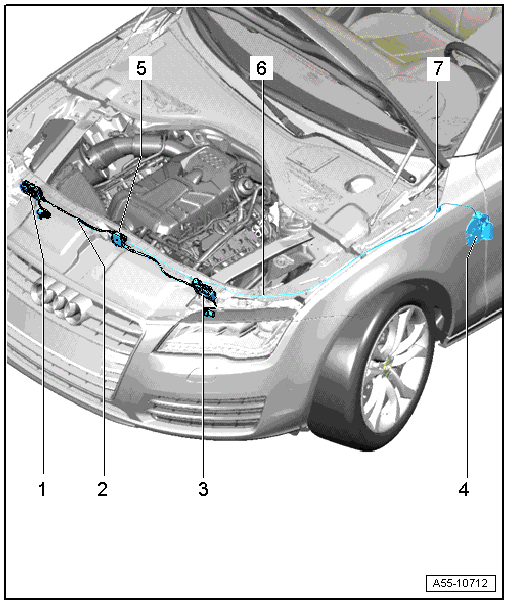

Overview - Release Cable
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Right Hood Latch
- Removing and Installing. Refer to OVERVIEW - HOOD, HOOD LATCH .
- Hood Latch Cable
- Removing:
-- Disconnect the release cable at the coupling. Refer to Release Cable Coupling .
-- Pull the release cable through to the engine compartment.
- Installing: install in reverse order of removal
- Adjust the hood latch point of release. Refer to Attach the Release Cable into the Coupling .
- Removing:
- Left Hood Latch
- Release Lever
- Disengage the release cable, refer to OPERATING LEVER, REMOVING AND INSTALLING .
- Cable Coupling
-- Disengage the release cable inside the passenger compartment before removing the lock carrier and when removing the operating lever.
- Hood Release Lever Cable
- Release cable to the operating lever in the vehicle interior.
- Grommet
- Make sure it fits correctly when installing it. The grommet must be pushed all the way into the bulkhead.
