Release Cable Coupling

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

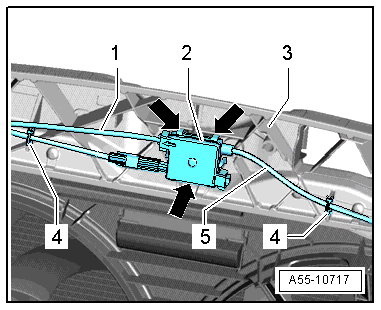

Fig 1: Identifying Rear Release, Retainers And Clips

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear release -1- and front -5- release cables from the clips -4- on both sides.

-- Unlock the retainers -arrows- and slide the coupling to the rear and out of the bracket.

-- The retainers must audibly lock into the bracket for the hook.
