WINDOW REGULATOR, REMOVING AND INSTALLING Bass Speaker Trim: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

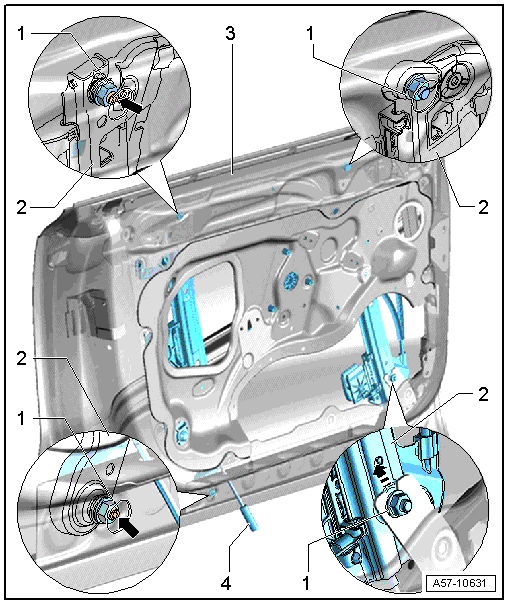

Fig 1: Identifying Nut, Window Regulator, Door & Adjusting Bolt

Courtesy of AUDI OF AMERICA, LLC

Nut
- Tightening specification. Refer to OVERVIEW - WINDOW REGULATOR .
- Only loosen the front lower nut, remove all the other nuts, refer to Fig 2
Window Regulator
- Removing. Refer to Bass Speaker Trim, Removing .
- Make sure the cable it routed correctly when installing. Refer to Installing
Door
Adjusting bolt
-- Adjust the window regulator and the side door window with the upper and lower adjusting bolts on the B-pillar -arrows-. Refer to The window regulator can be adjusted laterally or it can be angled by turning the upper and lower adjusting screws. .

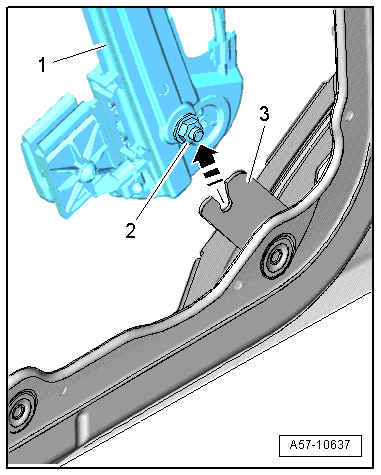

Fig 2: Identifying Lower Window Regulator Mount

Courtesy of AUDI OF AMERICA, LLC

-- Only loosen the front lower nut and remove the other nuts.

-- Lift the window regulator out of the mount and remove it from the door through the lower opening.
