Bass Speaker Trim, Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

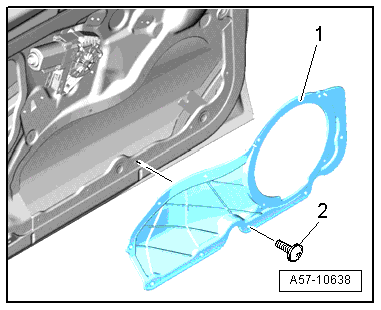

Fig 1: Identifying Bolts -2- And Trim -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bass speaker. Refer to Sound System .

-- Remove the bolts -2- and trim -1-.

-- After installing, tighten the screws to 3 Nm.

-- Remove the power window motor. Refer to Removing .

-- Remove the door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

-- Open the clips -arrow- on the threaded pin -3- for the window regulator using an 11 mm socket. To do this, place the socket on the threaded pin.

Fig 2: Identifying Cable -2-, Cable Guide -1- & Nuts -3-

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the cable -2- from the cable guide -1- on the inside of the door.

-- Remove the upper and lower plugs -1-.

-- Remove the nuts -3- on the front of the window regulator cable guide upward, loosen the nuts at the bottom.

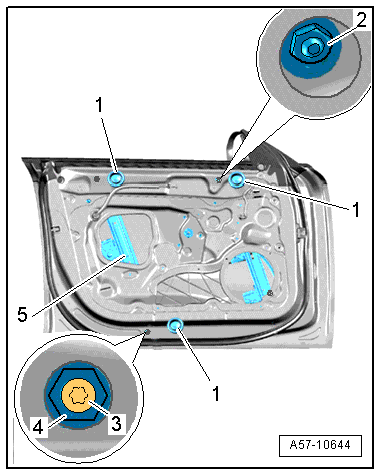

Fig 3: Identifying Top And Lower Rear Nuts -4-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the top and lower rear nuts -4- while counterholding at the door window adjustment threaded pin -3-.

-- Remove the window regulator downward through the opening in the inner door panel.
