WINDOW REGULATOR, REMOVING AND INSTALLING Bass Speaker Trim: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Cable -2-, Cable Guide -1- & Nuts -3-

Courtesy of AUDI OF AMERICA, LLC

Tightening specification. Refer to OVERVIEW - WINDOW REGULATOR .

Install in reverse order of removal. Note the following:

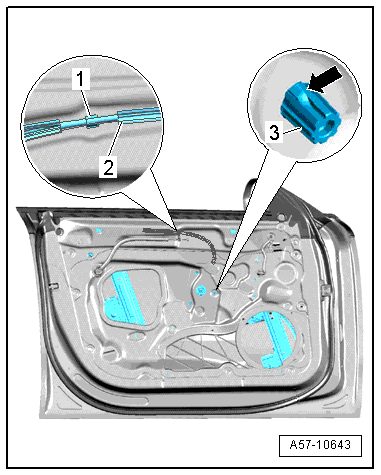

The clips -arrow- for the window regulator motor threaded pins -3- must be engaged in the inner door panel.
The upper cable must be engaged approximately in the center of the door at the top from the outside to the inside as shown in the graphic above.

-- The lower cable -2- must be installed in the hooks -arrows- on the window regulator motor mount -1-.

Fig 2: Identifying Lower Cable -2-, Hooks -Arrows- & Window Regulator Motor Mount -1-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The door window moves inward when the upper adjusting screw is turned to the right.

The door window moves outward when the lower adjusting screw is turned to the right.
