Headlamp Housing Mount

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Removal

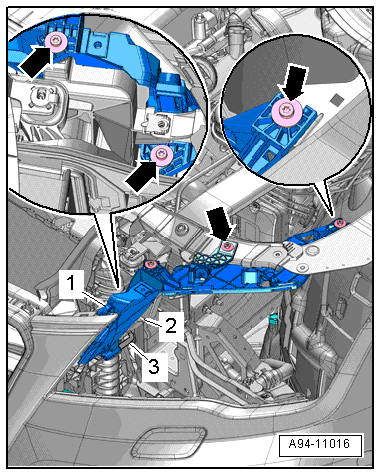

Fig 1: Identifying Headlamp Housing Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .

-- Slide the clamp -1- for the headlamp housing in the "closed" position.

-- Remove the ventilation hose -3- from the mount.

-- Remove the bolts -arrows-.

-- Remove the headlamp housing mount -2-.

Installation

Tightening specification, refer to HEADLAMP HOUSING BRACKET AND MOUNT OVERVIEW .

-- Mount the headlamp housing mount and then tighten the bolts hand-tight.

-- Install the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .

-- Align the headlamp housing according to the body contour gap dimensions. Refer to BUMPER COVER GAP DIMENSION .

-- Tighten the bolts -arrows-.

-- Check gap dimensions again, repeat adjustment of gap dimensions if necessary, as described above.

-- Adjust the headlamp. Refer to HID HEADLAMP, ADJUSTING or LED HEADLAMP, ADJUSTING .
