Bumper Cover Gap Dimension
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

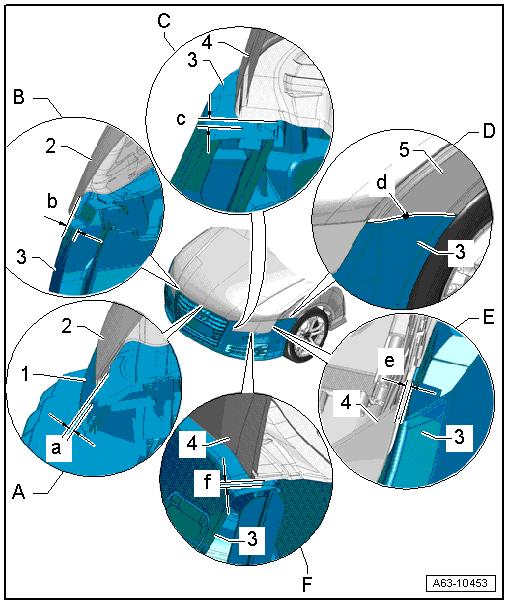

- A -
Hood to Radiator Grille
- Gap dimension -a- = 4.5 mm
-1- Radiator grille
-2- Hood
- Adjusting. Refer to BUMPER COVER, ADJUSTING .
- B -
Hood to Front Bumper Cover
- Gap dimension -b- = 4.6 ± 6.4 mm.
-2- Hood
-3- Bumper cover
- Adjusting. Refer to BUMPER COVER, ADJUSTING .
- C -
Front Bumper Cover to the Headlamp Housing
- Gap dimension -c- = 2.8 mm
-3- Bumper cover
-4- Headlamp housing
- D -
Front Bumper Cover to the Front Fender
- Gap dimension -d- = zero gap
-3- Bumper cover
-5- Front fender
- E -
Front Bumper Cover to the Headlamp Housing
- Gap dimension -e- = 2.0 mm
-3- Bumper cover
-4- Headlamp housing
- F -
Front Bumper Cover to the Headlamp Housing
- Gap dimension -f- = 2.7 mm
-3- Bumper cover
-4- Headlamp housing
