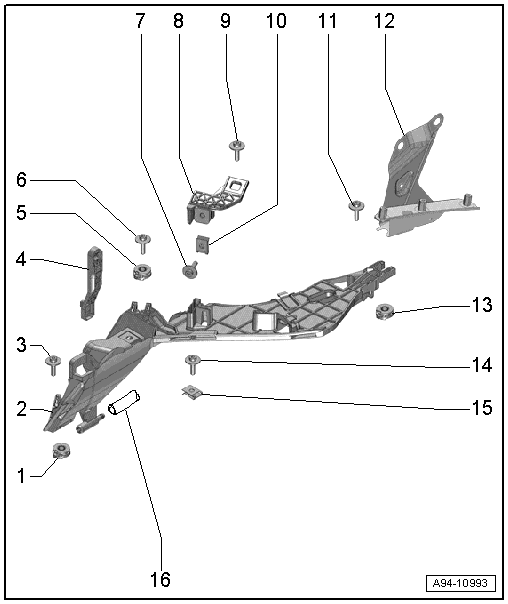

Headlamp Housing Bracket And Mount Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Adjusting Element
- For adjusting the headlamp housing to the bumper contour.
- Headlamp Housing Mount
- Removal and installation, refer to HEADLAMP HOUSING MOUNT .
- Screw
- 4.5 Nm
- Retaining Clip
- For securing headlamp housing to housing mount.
- Adjusting Element
- For adjusting the headlamp housing to the bumper contour.
- Screw
- 4.5 Nm
- Screw
- 4.5 Nm
- Headlamp Housing Bracket
- For adjusting the headlamp housing to the bumper contour.
- Screw
- 4.5 Nm
- Speed Nut
- Screw
- 4.5 Nm
- Lower Bracket
- For the fender
- Adjusting Element
- For adjusting the headlamp housing to the bumper contour.
- Screw
- 4.5 Nm
- Speed Nut
- Ventilation Hose
- For headlamp housing.
