Component Location Overview - Seat Belts And Attaching Points

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

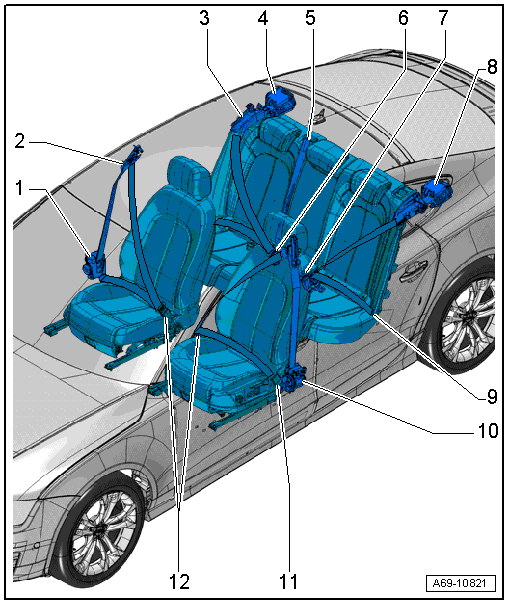

Fig 1: Identifying Component Location Overview - Seat Belts And Attaching Points

Courtesy of AUDI OF AMERICA, LLC

Automatic Belt Retractor
- for the front three-point seat belt
- With Front Passenger Seat Belt Tensioner Igniter 1 -N154-, Right Front Seat Belt Tensioner Control Module -J855- and Front Passenger Belt Force Limiter -G552-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
Seat Belt Height Adjuster
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
Belt Guide
- Removing and installing. Refer to OUTER REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
Automatic Belt Retractor
- for rear three-point seat belt
- Market-specific: with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Overview. Refer to OVERVIEW - REAR OUTER THREE-POINT SEAT BELT .
Automatic Belt Retractor
- For the rear three-point seat belt in the center
- Only vehicles with 3-person rear seat bench
- Market-specific: with Center Rear Seat Belt Tensioner Igniter -N198-
- Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT .
Rear Belt Anchor in the Center with Rear Belt Latch
- Only vehicles with 3-person rear seat bench
- Assembly Overview. Refer to OVERVIEW - REAR CENTER THREE-POINT SEAT BELT , and OVERVIEW - REAR SEAT BELT LATCH, 3-PERSON REAR SEAT .
Rear Seat Belt Latch
- Assembly Overview:
  - For 2-person rear bench, refer to OVERVIEW - REAR SEAT BELT LATCH, 2-PERSON REAR SEAT .
  - For 3-person rear bench, refer to OVERVIEW - REAR SEAT BELT LATCH, 3-PERSON REAR SEAT .
Automatic Belt Retractor
- for rear three-point seat belt
- Market-specific: with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Overview. Refer to OVERVIEW - REAR OUTER THREE-POINT SEAT BELT .
Rear Belt Anchor
- Overview. Refer to OVERVIEW - REAR OUTER THREE-POINT SEAT BELT .
Automatic Belt Retractor
- for the front three-point seat belt
- With Driver Seat Belt Tensioner Igniter 1 -N153-, Left Front Seat Belt Tensioner Control Module -J854- and Driver Belt Force Limiter -G551-
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
Front Belt End Fitting
- Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
Front Seat Belt Latch
- Overview. Refer to OVERVIEW - FRONT SEAT BELT LATCH .
