Overview - Rear Center Three-Point Seat Belt

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

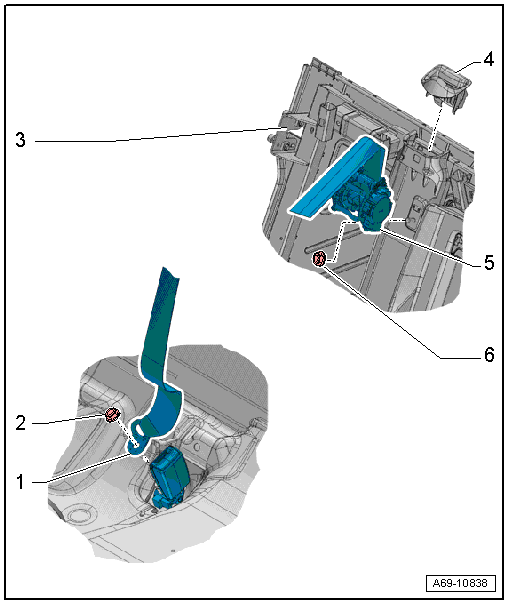

Fig 1: Overview Of Rear Center Three-Point Seat Belt

Courtesy of AUDI OF AMERICA, LLC

Center Rear Belt End Fitting
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
Nut
- Tightening specification. Refer to OVERVIEW - REAR SEAT BELT LATCH, 3-PERSON REAR SEAT .
Right 2/3 Split Rear Seat Backrest
Rear Center Belt Guide
- Replace the entire belt guide if damaged.
- Removing and installing. Refer to CENTER REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
Automatic Belt Retractor
- Market-specific: with Center Rear Seat Belt Tensioner Igniter -N198-
- Removing and installing. Refer to REAR CENTER THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
Nut
- 45 Nm
- If it was removed because of an accident, replace the nut
