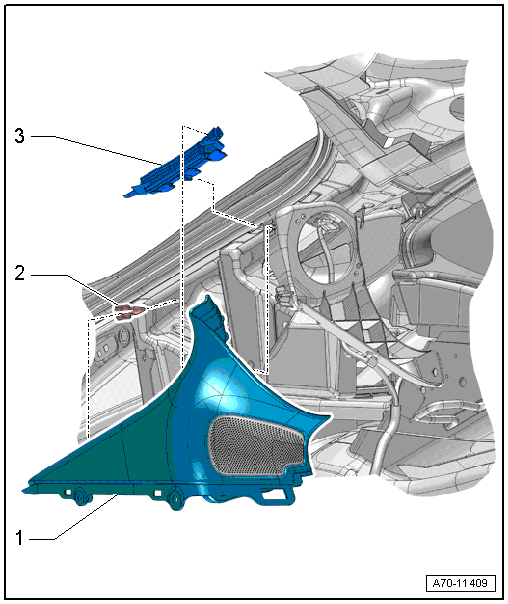

Overview - D-Pillar Trim Panel
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- D-Pillar Trim Panel
- Removing and installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Clip
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool T40280. To install, insert into the trim panel.
- Replace damaged or deformed clips
- Gap Cover
- install inside the body
