Impact Member, Removing And Installing, Vehicles With Trailer Hitch: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

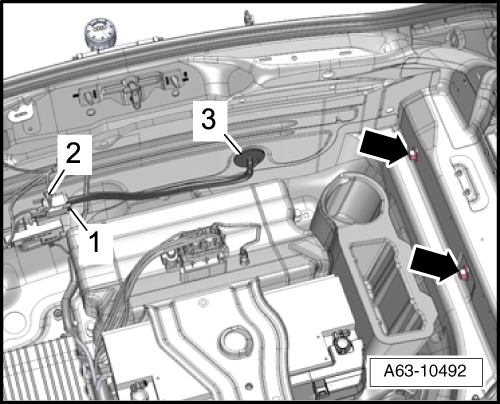

Fig 1: Identifying Impact Member, Vehicles With Trailer Hitch

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cable mount. Refer to REMOVING .

-- Remove the rear bumper cover. Refer to REMOVING .

-- Disconnect the connector -1- and remove the mount -2-.

-- Press the grommet -3- outward.

-- Remove the bolts -arrows-.

-- Remove the impact member -3- with a second technician.

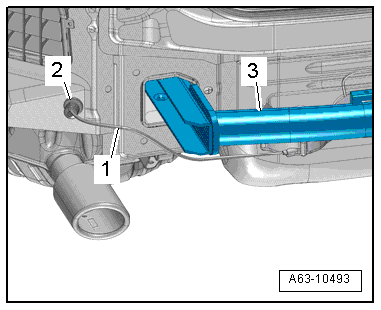

Fig 2: Identifying Grommet And Cable

Courtesy of AUDI OF AMERICA, LLC

-- Remove the grommet -2- and the cable -1-.

-- If replacing the impact member, remove the trailer hitch socket. Refer to TRAILER HITCH .
