Bumper Cover, Removing And Installing, Vehicles Through MY 2014: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

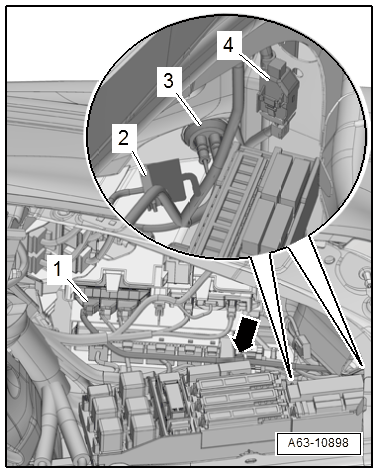

Fig 1: Identifying Connectors And Grommet

Courtesy of AUDI OF AMERICA, LLC

-- Remove the outer tail lamps. Refer to OUTER TAIL LAMPS .

-- Remove the cover in the luggage compartment side trim panel.

-- Vehicles with a trailer hitch: Remove the cable mount. The cable remains installed in the mount. Refer to CABLE MOUNT, REMOVING AND INSTALLING .

-- If equipped, cut the cable tie and disconnect the connector -1- from the Parking Aid Control Module -J446- and free up the wiring harness on the bracket for the control module -arrow-.

-- Disconnect the connectors -2 and 4-, if equipped.

-- Press the grommet -3- outward.

-- Remove the nut -1- with Body Socket T40078.

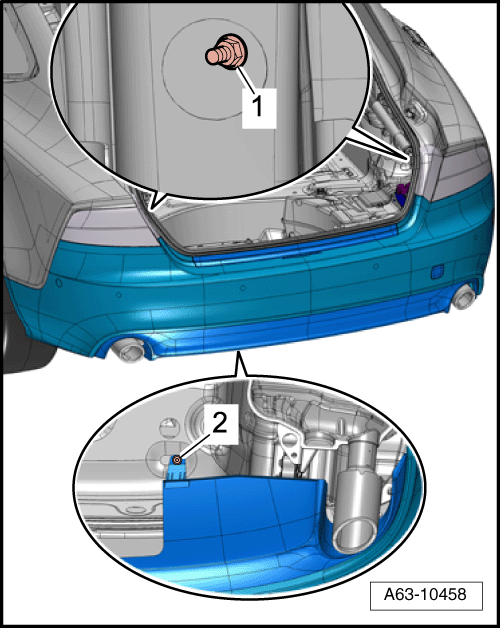

Fig 2: Identifying Nut And Screws

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -2-.

-- Remove the bolts -1, 2 and 3- on the bumper cover side pieces.

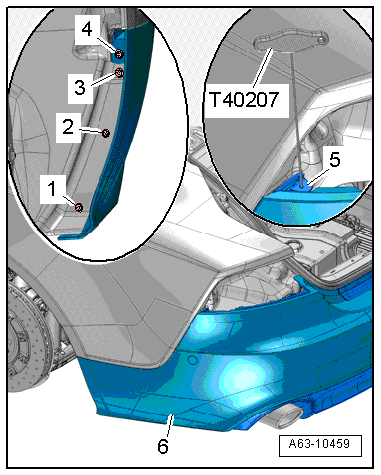

Fig 3: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Move the wheel housing liner slightly to the side and remove the bolt -4-.

-- Insert the Hook Tool T40207 into the opening and pull the locking rail -5- upward to unlock it.

-- Disengage the side pieces on the side panel.

-- Remove the bumper cover -6-.

-- Disconnect the connector -1- on the exhaust door control unit, if equipped.

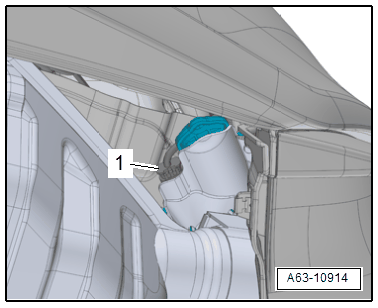

Fig 4: Identifying Connector

Courtesy of AUDI OF AMERICA, LLC

-- Guide the wiring harness out through the opening in the body, if equipped.

-- Lay the bumper cover on a soft surface.
