Overview - Sliding Sunroof, A4 AVANT

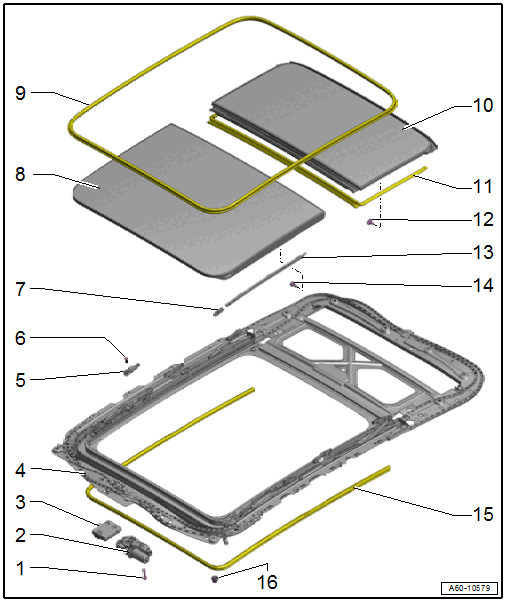

Fig 1: Exploded View Of Sliding Sunroof, A4 Avant

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 3 Nm
- Quantity: 2
Sunroof Motor -V1-
- Removing and Installing. Refer to SUNROOF MOTOR -V1-, REMOVING AND INSTALLING, A4 .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Sunroof Control Module -J245-
- Removing and Installing. Refer to SUNROOF CONTROL MODULE -J245-, REMOVING AND INSTALLING, A4 .
- Perform the adaptation after installing. Refer to SUNROOF CONTROL MODULE -J245-, PROGRAMMING .
Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, A4 AVANT .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Guide
- For the front glass panel
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Bolt
- 1 Nm
- Thread cutting
- Position and install by hand
- Quantity: 2
Gliding Piece
- Removing and Installing. Refer to GLIDING PIECE, REMOVING AND INSTALLING .
Glass Panel
- Front
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, FRONT, A4 AVANT AND MARKET-SPECIFIC VERSION .
- Adjusting. Refer to GLASS PANEL, ADJUSTING .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
- Emergency Opening. Refer to EMERGENCY OPENING .
Roof Opening Seal
- Replace after removing.
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, A4 AVANT AND MARKET-SPECIFIC VERSION .
Glass Panel
- Rear
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR, A4 AVANT AND MARKET-SPECIFIC VERSION .
- Adjusting. Refer to GLASS PANEL, ADJUSTING .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Seal
- For the rear glass panel
- Removing and Installing. Refer to INSTALLING .
Bolt
- 7 Nm
- Replace after removing.
- Self-locking
- Quantity 4
Rubber Trim
- On the front glass panel
- Removing and Installing. Refer to RUBBER TRIM, REMOVING AND INSTALLING, A4 AVANT AND MARKET-SPECIFIC VERSION .
Bolt
- 7 Nm
- Replace after removing.
- Self-locking
- Quantity: 8
Seal
- Inner
- Attached from the inside onto the sunroof frame
Nut
- 8 Nm
- Tightening sequence. Refer to INSTALLING .
- Quantity: 18
