Component Location Overview - Seat Belts And Mounting Points, A3/A3 SPORTBACK

WARNING: This page is about a different variant/trim than selected.

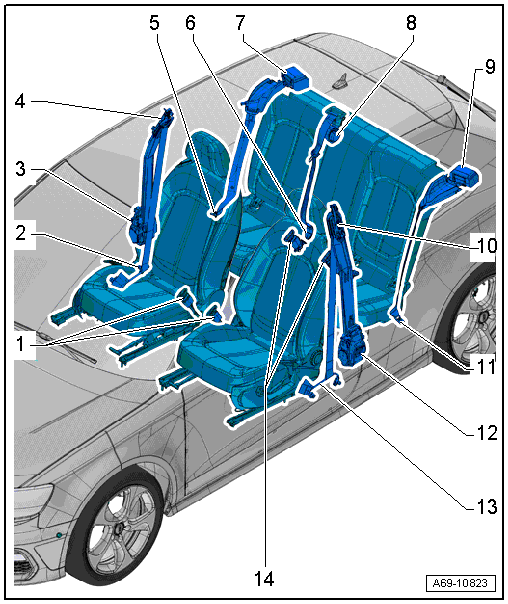

GWWA69-10823Courtesy of AUDI OF AMERICA, LLC
  1. Front Seat Belt Latch
  2. Front Belt End Fitting
  3. Automatic Belt Retractor
    • For the front three-point seat belt
    • With Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
    • Market-specific: with Front Passenger Belt Force Limiter -G552-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
  4. Seat Belt Height Adjuster
  5. Outer Rear Belt End Fitting
  6. Center Rear Belt End Fitting
  7. Automatic Belt Retractor
  8. Automatic Belt Retractor
  9. Automatic Belt Retractor
  10. Seat Belt Height Adjuster
  11. Outer Rear Belt End Fitting
  12. Automatic Belt Retractor
    • For the front three-point seat belt
    • With Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
    • Market-specific: with Driver Belt Force Limiter -G551-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT .
  13. Front Belt End Fitting
  14. Rear Seat Belt Latch
