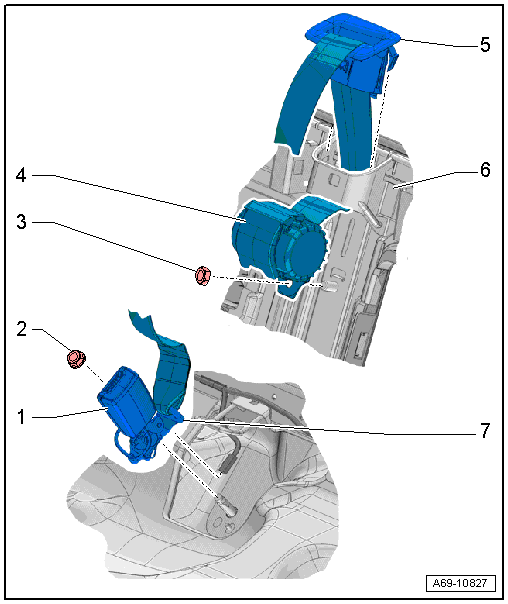

Overview - Rear Center Three-Point Seat Belt
WARNING: This page is about a different variant/trim than selected.
- Seat Belt Latch
- With Passenger Side Rear Seat Belt Switch -E259-
- Market-Specific: without seat belt switch
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Always replace if the belt tensioner has deployed when the belt is buckled
- Must lie on stop when tightening the nut.
- Nut
- Tightening specification OVERVIEW - REAR SEAT BELT LATCH
- Nut
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Automatic Belt Retractor
- Removing and Installing. Refer to REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING .
- Rear Center Seat Belt Guide
- Replace the entire seat belt guide if damaged
- Removing and Installing. Refer to REAR SEAT BELT GUIDE IN CENTER SEATING POSITION, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Right 2/3 Rear Seat Backrest
- Center Rear Belt End Fitting
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
