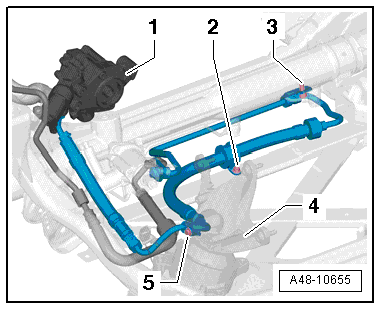

Pressure Line from the Power Steering Pump to the Power Steering Gear
1 - Power steering pump
2 - Mounting on crossbrace
3 - Mounting on the power steering
4 - Transmission Mount
5 - Mounting on the transmission mount
Bolt tightening specification -3 and 5- : 9 Nm
Nut tightening specification -2- : 9 Nm
Connection on the power steering pump, vehicles without dynamic steering. Refer to OVERVIEW - POWER STEERING PUMP, VEHICLES WITHOUT DYNAMIC STEERING WITH 8-CYLINDER ENGINE .
Connection on the power steering pump, vehicles with dynamic steering. Refer to OVERVIEW - POWER STEERING PUMP, VEHICLES WITH DYNAMIC STEERING WITH 8-CYLINDER ENGINE .
NOTE:
Align the hoses and lines on the connections so that the color markings match up.
