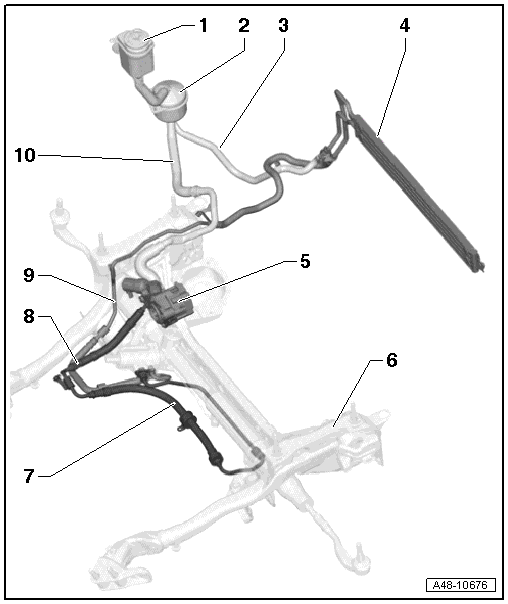

Overview - Hydraulic Lines And Reservoir, Vehicles With 8-Cylinder Engine: Notes
- Upper Reservoir
- Note installed position. Refer to Upper Reservoir to Body
- Lower Reservoir
- Note installed position. Refer to Lower Reservoir to Body
- Return Hose
- From the hydraulic oil cooler to the lower reservoir
- Connection on hydraulic fluid cooler -item 9- OVERVIEW - HYDRAULIC LINES AND RESERVOIR, VEHICLES WITH 8-CYLINDER ENGINE
- Connection on the lower reservoir. Refer to Lower Reservoir to Body
- Hydraulic Oil Cooler
- Removing and installing. Refer to HYDRAULIC FLUID COOLER, REMOVING AND INSTALLING .
- Connections on the hydraulic fluid cooler. Refer to Return Lines to Hydraulic Fluid Cooler - 4.2L FSI- and TDI Engines
- Power Steering Pump
- With Power Steering Pump -V119- (vehicles with dynamic steering)
- There are different versions. Refer to the Parts information.
- Delivery pressure, checking. Refer to POWER STEERING PUMP DELIVERY PRESSURE, CHECKING, VEHICLES WITH 8-CYLINDER ENGINE .
- Removing and installing:
- Vehicles without dynamic steering. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING, VEHICLES WITHOUT DYNAMIC STEERING WITH 8-CYLINDER ENGINE .
- Vehicles with dynamic steering. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING, VEHICLES WITH DYNAMIC STEERING WITH 8-CYLINDER ENGINE .
- Subframe
- Pressure Line
- From the power steering pump to the power steering gear
- Wire routing. Refer to Pressure Line from the Power Steering Pump to the Power Steering Gear
- Connection to power steering pump:
- Vehicles without dynamic steering. Refer to OVERVIEW - POWER STEERING PUMP, VEHICLES WITHOUT DYNAMIC STEERING WITH 8-CYLINDER ENGINE .
- Vehicles with dynamic steering. Refer to OVERVIEW - POWER STEERING PUMP, VEHICLES WITH DYNAMIC STEERING WITH 8-CYLINDER ENGINE .
- Connection on the power steering gear. Refer to OVERVIEW - STEERING GEAR, HYDRAULIC STEERING GEAR WITH TIE RODS .
- Union Nut
- 40 Nm
- Separating point for checking the delivery pressure of the power steering pump. Refer to POWER STEERING PUMP DELIVERY PRESSURE, CHECKING, VEHICLES WITH 8-CYLINDER ENGINE .
- Return Line
- From the power steering gear to the hydraulic oil cooler
- Wire routing. Refer to Return Line from the Power Steering Gear to the Hydraulic Fluid Cooler
- Connection on hydraulic fluid cooler. Refer to Return Lines to Hydraulic Fluid Cooler - 4.2L FSI- and TDI Engines
- Connection on the power steering gear. Refer to OVERVIEW - STEERING GEAR, HYDRAULIC STEERING GEAR WITH TIE RODS .
- Intake Hose
- From the reservoir to the power steering pump
- Wire routing. Refer to Intake Hose from the Lower Reservoir to the Power Steering Pump
- Connection on the lower reservoir. Refer to Lower Reservoir to Body
