Pressure Line on Subframe and Crossbrace

-- Attach the pressure line retaining plate -3- to the crossbrace using the nut -1- and to the bracket -2- inside the engine compartment.

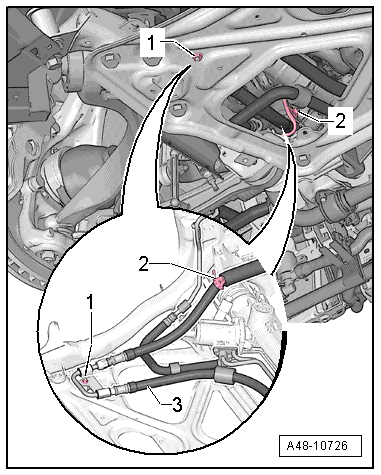

Fig 1: Installing Pressure Line on Subframe and Crossbrace

Courtesy of AUDI OF AMERICA, LLC

Tightening specification for the nuts -1- : 9 Nm.

Connection on the power steering pump, vehicles without dynamic steering. Refer to OVERVIEW - POWER STEERING PUMP, VEHICLES WITHOUT DYNAMIC STEERING WITH 6-CYLINDER ENGINE .

Connection on the power steering pump, vehicles with dynamic steering. Refer to OVERVIEW - POWER STEERING PUMP, VEHICLES WITH DYNAMIC STEERING WITH 6-CYLINDER ENGINE .

Return Hose Mounting on the Lock Carrier V6 FSI

• The clips are pushed on the rib on the lock carrier -arrows-

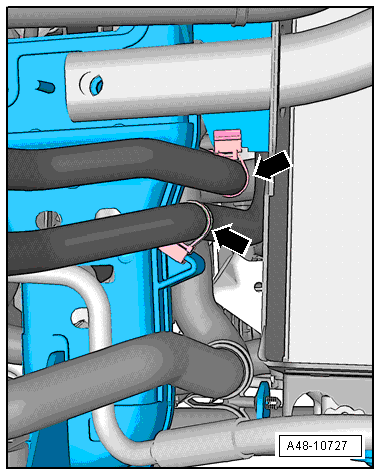

  Fig 2: Identifying Hose Clips

  Courtesy of AUDI OF AMERICA, LLC

Return Hose Mounting on the Lock Carrier V6 FSI

• The clips are pushed on the rib on the lock carrier -arrows-

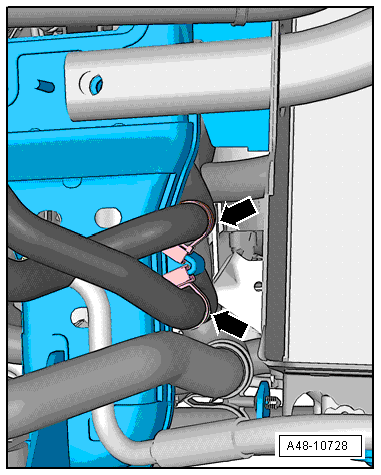

  Fig 3: Identifying Hose Clips

  Courtesy of AUDI OF AMERICA, LLC
