Overview - SUBFRAME, Front Wheel Drive (Fwd)

WARNING: This page is about a different variant/trim than selected.

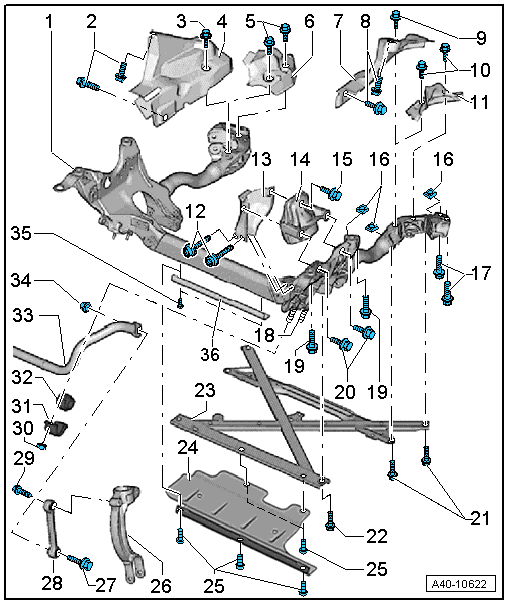

Fig 1: Exploded View Of Subframe, Crossbrace, Stabilizer Bar, Coupling Rod And Subframe Shield
GWWA40-10622Courtesy of AUDI OF AMERICA, LLC
  1. Subframe
  2. Bolt
    • 9 Nm
  3. Bolt
    • 20 Nm
  4. Subframe Shield
  5. Bolt
    • 20 Nm
  6. Subframe Shield
    • Installed Depending On The Engine Versions
  7. Subframe Shield
  8. Bolt
    • 9 Nm
  9. Bolt
    • 20 Nm
  10. Bolt
    • 20 Nm
  11. Subframe Shield
    • Installed Depending On The Engine Versions
  12. Bolt
  13. Retaining Plate
    • For The Engine Mount
  14. Engine Mount
  15. Bolt
  16. Square Nut
    • Always Replace If Removed
    • There Are No Square Nuts On The Front If The Vehicle Has Electromechanical Power Steering.
  17. Bolt
    • 115 Nm  +90°
    • Always Replace If Removed
    • Tightening Sequence Or Procedure For Tightening The Subframe. Refer To SUBFRAME BOLTING PROCEDURE:
  18. Stud Bolt
    • Replace If Damaged.
  19. Bolt
    • 115 Nm  +90°
    • Always Replace If Removed
    • Tightening Sequence Or Procedure For Tightening The Subframe. Refer To SUBFRAME BOLTING PROCEDURE:
  20. Bolt
  21. Bolt
    • 90 Nm  +135°
    • Always Replace If Removed
  22. Bolt
    • On Vehicles With Hydraulic Power Steering 90 Nm  +135°
    • On Vehicles With Electromechanical Power Steering: 90 Nm  +90°
    • Always Replace If Removed
  23. Subframe Crossbrace
    • Removing And Installing. Refer To SUBFRAME CROSSBRACE, REMOVING AND INSTALLING, A4 AND A5 COUPE .
      CAUTION:

      The Suspension Components Could Be Damaged.

      If The Subframe, The Steering Gear Or The Subframe Crossbrace Are Not Installed Correctly, Do Not Rest The Vehicle On Its Wheels.

      The Vehicle Must Not Be Supported On The Subframe Or The Subframe Crossbrace (For Example Using A Floor Jack).

  24. Shield
    • Installed On Vehicles With Electromechanical Power Steering And Heavy Duty Suspension
    • Not On AWD
  25. Bolt
    • 20 Nm
  26. Shock Absorber Fork
  27. Bolt
  28. Coupling Rod
  29. Bolt
  30. Nut
  31. Clamp
  32. Rubber Bushing
    • The Opening On The Rubber Bushing Must Be Facing Up When Installing The Subframe.
    • There Must Not Be Any Grease On The Stabilizer Bar And Rubber Bushing When Installing Them.
  33. Stabilizer Bar
  34. Nut
    • Always Replace If Removed
  35. Bolt
    • 20 Nm
    • Installed On Vehicles With Electromechanical Power Steering
  36. Shield
    • Installed On Vehicles With Electromechanical Power Steering
    • Not On AWD
