Overview - Bumper Cover, AUDI RS5

Fig 1: Exploded View Of Rear Bumper Cover, Audi RS5

1. Bolt
   • 2 Nm
   • Quantity: 5
2. Rear Bumper Cover
   • Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 .
3. Trim for Left Tail Pipe
   • Removing and installing. Refer to Installing => Tail Pipe Trim .
4. Bolt
   • 2 Nm
   • Quantity: 4
5. Left Side Mount
   • For the bumper cover
   • Removing and installing. Refer to BUMPER GUIDE PIECES, REMOVING AND INSTALLING .
6. Bolt
   • Quantity: 3
   • Tightening sequence. Refer to Fig 2
7. Bumper Cover Locking Mechanism
   • Adjusting bolt tightening specification: 3 Nm
   • Removing and installing. Refer to BUMPER GUIDE PIECES, REMOVING AND INSTALLING .
8. Bolt
   • Quantity: 2
   • Tightening sequence. Refer to Fig 2
9. Center Guide
   • For the bumper cover
   • Removing and installing. Refer to Installing => Center Guide .
10. Nut
    • 1.5 Nm
    • Quantity: 2
11. Rear Parking Aid Sensor
    • Removing and installing. Refer to Parking Aid .
12. Trim for the Right Tail Pipe
    • Removing and installing. Refer to Installing => Tail Pipe Trim .
13. Bumper Cover Locking Mechanism
    • Adjusting bolt tightening specification: 3 Nm
    • Removing and installing. Refer to BUMPER GUIDE PIECES, REMOVING AND INSTALLING .
14. Bolt
    • Quantity: 2
    • Tightening sequence. Refer to Fig 2
15. Right Side Mount
    • For the bumper cover
    • Removing and installing. Refer to BUMPER GUIDE PIECES, REMOVING AND INSTALLING .
16. Bolt
    • Quantity: 3
    • Tightening sequence. Refer to Fig 2
17. Bolt
    • 2 Nm
    • Quantity: 4
18. Cap
    • For the towing eye
19. Diffuser Trim
    • Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING, AUDI RS5 => Diffuser Trim .

Side Mount and Bumper Cover Locking Mechanism - Tightening Specifications and Sequence

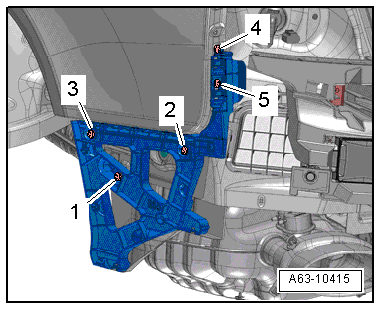

Fig 2: Side Mount and Bumper Cover Locking Mechanism - Tightening Specifications and Sequence

-- Tighten the bolts to 2 Nm in the following sequence: -1 to 5- .
