Attachments, Removing And Installing, AUDI RS5: Installing

• Tightening specifications. Refer to OVERVIEW - BUMPER COVER, AUDI RS5 .

Install in reverse order of removal. Note the following:

-- The diffuser trim must engage completely.

Tail Pipe Trim

Fig 1: Exhaust Pipe Trim (1 Of 2)

Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 .

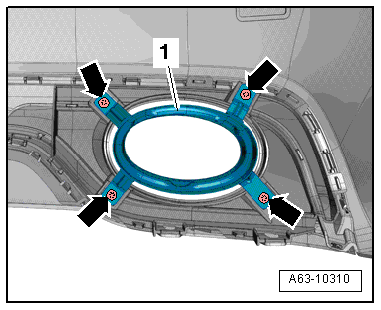

-- Remove the bolts -arrows- .

-- Remove the tail pipe trim -1- inward from the bumper cover.

Installing

Fig 2: Exhaust Pipe Trim (2 Of 2)

• Tightening specifications. Refer to OVERVIEW - BUMPER COVER, AUDI RS5 .

Install in reverse order of removal. Note the following:

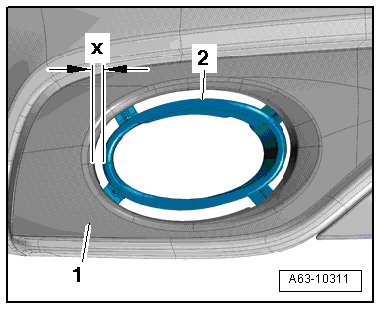

-- Check the trim distance for the tail pipe -2- on the bumper cover -1- :

• Dimension -x- = uniform gap.

-- Install the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 .
