Overview - Seat Bench/Single Seat, One Piece Bench Seat With Center Storage Compartment

WARNING: This page is about a different variant/trim than selected.

NOTE:

The One Piece Bench Seat With Center Storage Compartment Is Special Equipment And Is Only Installed On Vehicles With Super Sport Front Seats.

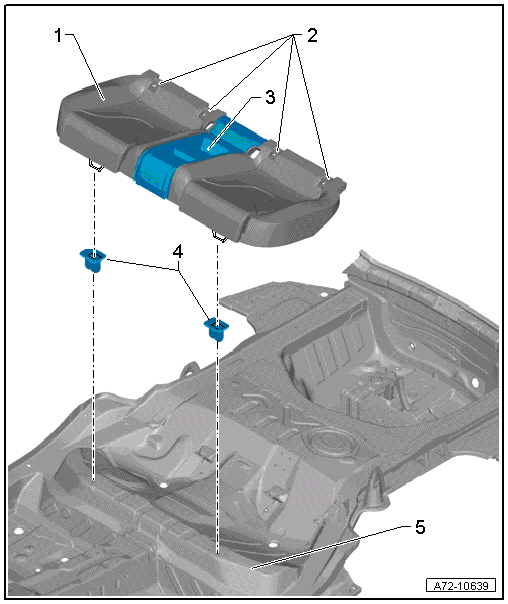

Fig 1: Identifying One Piece Bench Seat, With Center Storage Compartment Overview

Courtesy of AUDI OF AMERICA, LLC

Bench Seat
NOTE:
The Wire Frame Of The Bench Seat Must Be Checked After Every Disassembly Of The Bench Seat And Be Readjusted In The Case Of Deformation.
- One piece
- Removing and installing. Refer To SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .
- Check and readjust the wire frame. Refer To FLOOR PANEL FOR BENCH SEAT MOUNTING GROMMETS AND WIRE FRAME, CHECKING AND ALIGNING
LATCH Child Seat Anchorage Cover
- Equipment levels
- Quantity: 4
- Clipped to the LATCH child seat anchorage brackets that are welded to the floor
Center Storage Compartment
- Removing and installing. Refer To CENTER STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Mounting Grommet
NOTE:
Replace The Mounting Grommets Each Time The Bench Seat Is Removed.
- Quantity: 2
- For securing bench seat
- Clipped into the vehicle floor
- Removing and installing. Refer To SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING or REMOVE MOUNTING GROMMETS -2- FROM THE BODY OPENING AND THROW AWAY. .
Vehicle Floor
NOTE:
The floor panel into which the mounting grommets are inserted must be checked after every disassembly of the bench seat and be readjusted in the case of deformation.
- Check and readjust the floor panel. Refer To FLOOR PANEL FOR BENCH SEAT MOUNTING GROMMETS AND WIRE FRAME, CHECKING AND ALIGNING
