Seat Height Adjustment, Removing And Installing, RS Bucket Seat
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

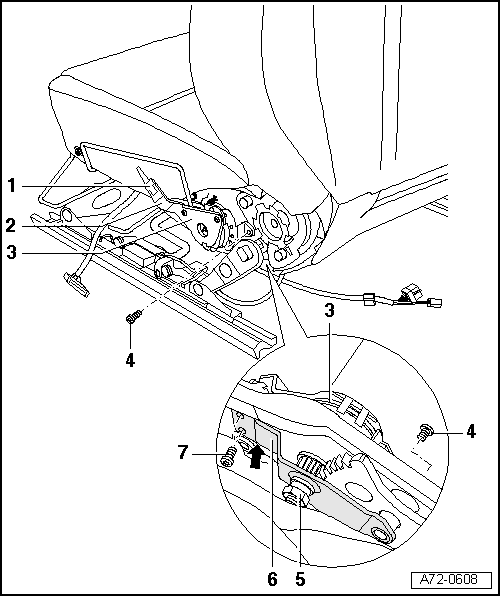

- Clip
- Seat Height Adjustment Handle Lever
- The illustration does not correspond to the construction style of the RS sport seat
- Seat Height Adjuster
Removing
-- Remove the seat. Refer to FRONT SEAT, REMOVING AND INSTALLING, RS BUCKET SEAT .
-- Secure the seat on the Engine/Transmission Holder - Seat Repair FixtureVAS6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove backrest and front seat pan FRONT BACKREST, REMOVING AND INSTALLING, BACKREST AND SEAT PAN, RS BUCKET SEAT .
-- Remove nut -5-.
-- Remove the screws -7-.
-- Remove the bolt -4-.
-- Remove the seat height adjuster -3- and the retaining plate -6-.
Installing
Install in reverse order of removal. Watch out for the following:
-- Make sure the retaining plate -6- makes contact on backrest frame at position of -arrow-.
- Bolt
- 8 Nm
- Nut
- 12 Nm
- Retaining Plate
- Bolt
- 8 Nm
- Quantity: 2
