Overview - Front Seat, Super Sport Seat

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The overview is based on the driver seat. The passenger seat is similar and the components are installed reversed from left to right.

The illustration does not show the floor covering and the four-way lumbar support.

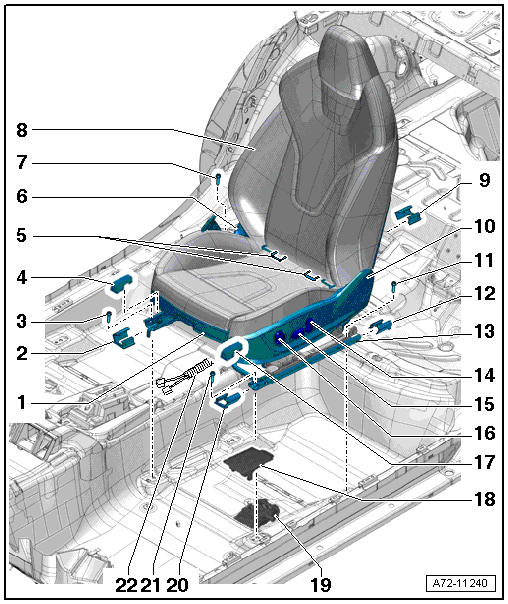

Fig 1: Overview Of Front Seat, Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Seat Depth Adjuster
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
Cover
- For the seat rail
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
Bolt
- 50 Nm
Spindle Cover
- Clipped to the seat forward/back adjustment spindle
- Removing and installing. Refer to SEAT RAIL SPINDLE COVER, REMOVING AND INSTALLING .
LATCH Child Seat Anchor
- Equipment levels
- For the front passenger seat only
- Removing and installing. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- For checking after an accident, refer to CHILD SEAT ANCHORS, CHECKING AFTER A COLLISION .
Tunnel-Side Trim
- Removing and installing. Refer to TRIM, REMOVING AND INSTALLING, TUNNEL-SIDE .
Bolt
- 50 Nm
Super Sport Front Seat
- Removing and installing. Refer to FRONT SEAT, REMOVING AND INSTALLING, POWER .
Cover
- For the seat rail
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
Sill-Side Trim
- Removing and installing. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING, POWER STANDARD SEAT, WITH OR WITHOUT MEMORY FUNCTION .
Bolt
- 50 Nm
Cover
- For the seat rail
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
Lower Seat Frame
- Overview. Refer to OVERVIEW - SEAT PAN .
Actuator
- for backrest adjustment
- Actuator, Removing and Installing. Refer to BACKREST AND HEADREST ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Control head, removing and installing, refer to REMOVING AND INSTALLING THE SEAT ADJUSTMENT CONTROL HEAD
Actuator
- for seat adjustment
- Actuator, Removing and Installing. Refer to SEAT ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Control head, removing and installing, refer to REMOVING AND INSTALLING THE SEAT ADJUSTMENT CONTROL HEAD
Actuator
- For the lumbar support
- Lumbar Support Adjustment Switch, Removing and Installing. Refer to LUMBAR SUPPORT ADJUSTMENT SWITCH, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/COMFORT SEAT .
- Four-way lumbar support removing and installing. Refer to LUMBAR SUPPORT, REMOVING AND INSTALLING, MANUAL FOUR-WAY LUMBAR SUPPORT .
Spindle Cover
- clipped to the seat forward/back adjustment spindle
- Removing and installing. Refer to SEAT RAIL SPINDLE COVER, REMOVING AND INSTALLING .
Cover
- For the connector station
- Removing and installing. Refer to FRONT SEAT, MOVING INTO SERVICE POSITION .
Connector Station
- Connector assignment. Refer to CONNECTOR STATION CONNECTORS .
Cover
- For the seat rail
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
Bolt
- 50 Nm
Connector
- With a corrugated tube for the modular wiring routing
- Modular wiring with corrugated tube on front seat. Refer to MODULAR WIRE ROUTING WITH CORRUGATED TUBE ON FRONT SEAT .
