Bowden cable for backrest lock, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

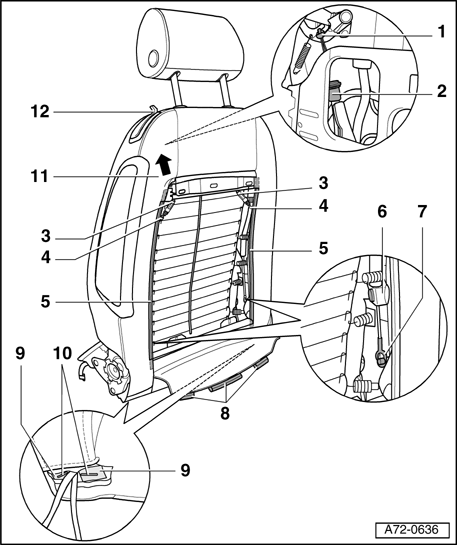

1 - Holder
2 - Holder
3 - Bowden cable adjusters (2x)
4 - Bowden cables for backrest lock (2x)
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove backrest → Front seat backrest, assembly overview .
- Remove backrest cover panel → Backrest cover panel, removing and installing .
- Pry out staples - 10 - (4x) on left and right.
- Remove velcro strips - 9 - (4x) on left and right.
- Detach piping on side - 5 - (2x).
- Pry out piping at bottom - 8 - (3x).
- Use pliers to disengage tabs -7- (2x) at bottom left and right.
- Use screwdriver to pry Bowden cables out of mounts -6- (2x) on left and right.
- Remove Bowden cables -4- (2x) upward.
- Push cover - 11 - upward in direction of - arrow -.
- Detach Bowden cables at holders -1- and -2-.
- Installing
- Install Bowden cables for backrest lock in reverse order of removal.
- Set Bowden cables -4- (2x) with adjusters -3- (2x). Make sure pins at bottom left and right are released simultaneously on actuating easy-entry facility handle - 12 -.
5 - Side piping (2x)
6 - Mounts (2x)
7 - Tabs (2x)
8 - Bottom piping (3x)
9 - Velcro strips (4x) on left and right
10 - Staples (4x) on left and right
- Commercially available.
- Only use upholstery stapler.
11 - Cover
12 - Handle of easy-entry facility
